About This

• 1. Measuring range: 30 to 130dB, the product operation is very convenient, it can be used only by connecting the power supply (additional power supply needs 5V 1A) accuracy: ±1.5dB (reference sound pressure level, 94dB @ 1KHz), frequency response range: 31.5Hz ~8.5KHz

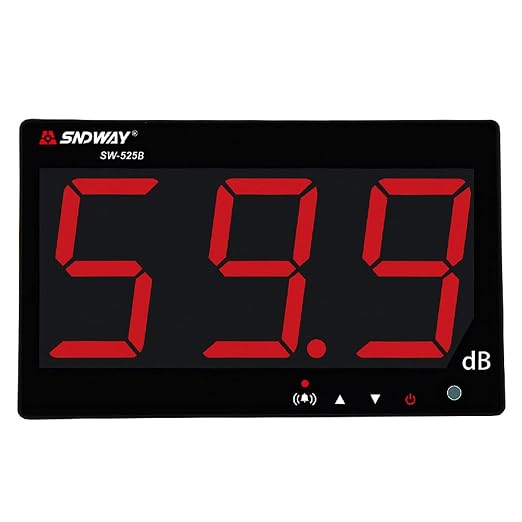

• 2. Large 9.6-inch LCD display with backlight, powered by DC 5V 1A Micro USB socket, this meter can be used to measure noise in various occasions and accessories, such as factories, offices, homes, traffic routes, audio, air-conditioning refrigerators, etc. Wait

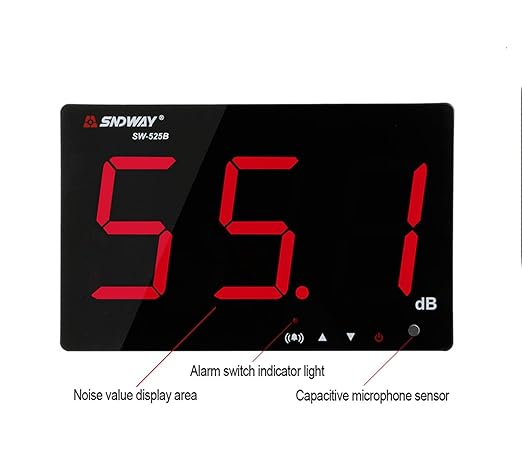

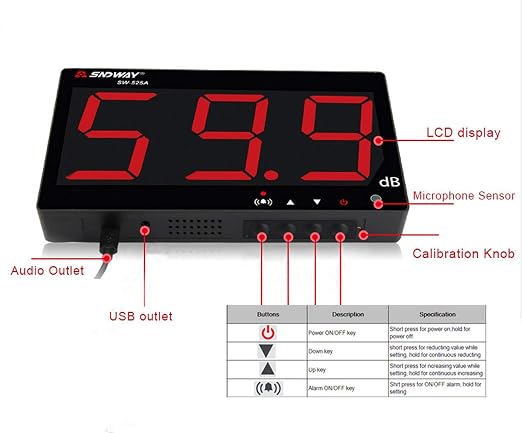

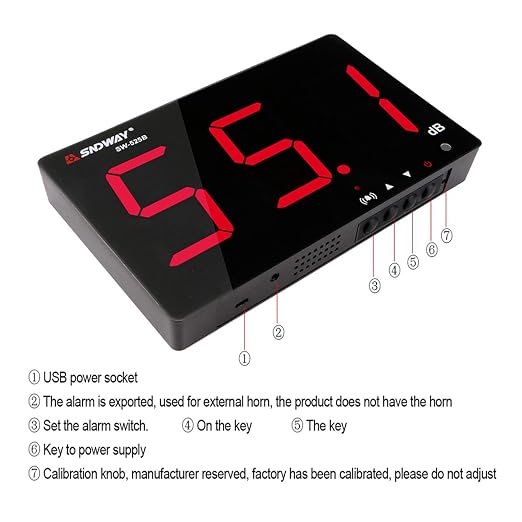

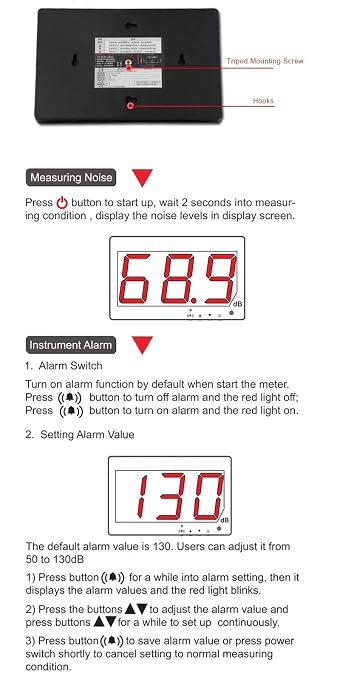

• 3. Alarm switch setting: short press the "horn button" to turn off the alarm and the red light goes out, then press the "horn button" to turn on the alarm, and the red light is on. In the normal measurement state, long press the "horn key" to enter the alarm setting, adjust the alarm value through the up and down keys, short press the "horn key" to save the alarm value, or short press the "power key" to cancel the setting.
• 4. Note: Power on, short press the "switch machine" button to shut down, long press the "switch machine" button, automatic startup function: the product will automatically turn on when connected to the power supply, long press the "switch machine" button, it will shut down, if LCD display appears The numbers on the screen do not jump, and garbled characters appear. You need to restart the machine. If you have any questions, please contact us in time.
• 5. Note: The device needs an additional charger, which matches the standard 5V 1A charger. The voltage and current must not exceed 5V 1A. If it is too large, it will burn the circuit board. When using the sensor, please pay attention to whether there is any blockage of foreign matter. If the device is turned on, the LCD display does not display, and the sensor may be faulty. Please contact us in time, we will handle it for you as soon as possible.

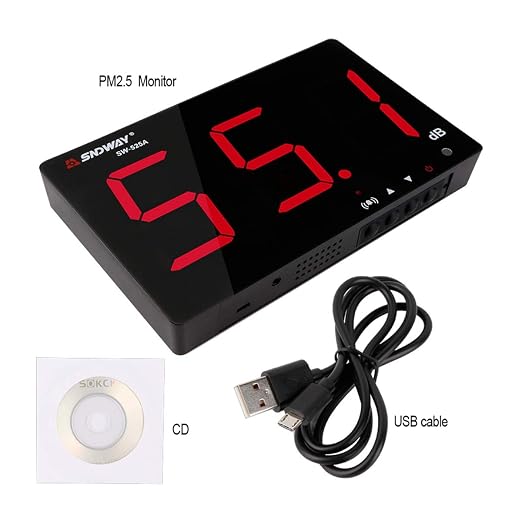

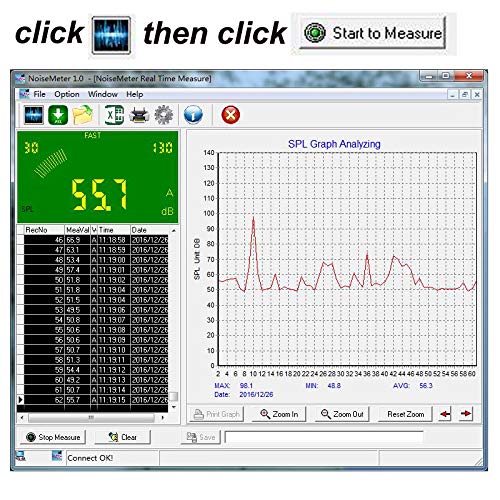

• 6. 【Connect to Computer to Download Data】 The 525B noise meter supports computer applications and can communicate with a computer via USB data cable to download records, perform real-time sampling, print charts and data, etc. The software package is the SW-525B Wall-mounted Noise Meter file. You can log in to the "Shendawei" official website, download it, decompress it, open the installation and usage instructions folder, and follow the prompts to install the software.

Overview

• Brand : SNDWAY
• Power Source : Usb
• Style : Art
• Color : Black
• Item Weight : 16 ounces
