About This

• 【High-grade DC-DC Buck Converter】It adopts premium quality electronic components and waterproof (IP68) aluminum housing. Widely used for golf cart, club car, motor, speaker, GPS, car display screen, LED strip light, air-conditioner, electric fan, solar energy, DVD and other devices that requires DC 12V voltage.
• 【Input Voltage】 DC 36V / 48V (Input Range: 35V to 60V). A stable DC power is recommended as the input power supply, and the rated voltage supply should be within the voltage range of 35V to 60V.
• 【Output Voltage】DC 12V (Output Current: 20A). Please NOTE the output voltage/current/power is rated.
• 【Multiple Protections】Built-in over-temperature, over-current, over-voltage, output short- circuit protection to ensure your devices safely.

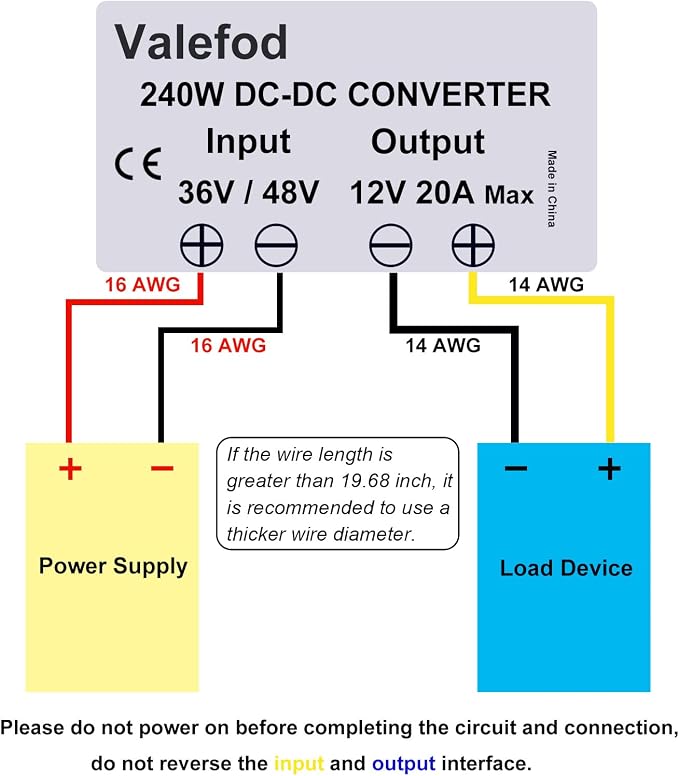

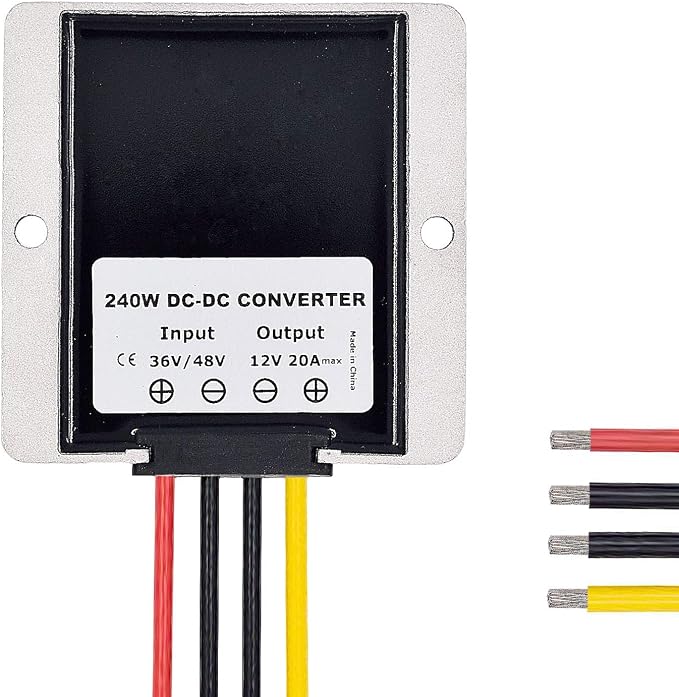

• 【Easy to DIY】Connect INPUT wires to power source, OUTPUT wires to your load device. The wiring diagram is labeled on the back of buck converter. Please don't power on before completing the circuit and connection, do not reverse the input and output interface. ※ Two INPUT wires = Red wire(positive pole) + Black wire(negative pole) ※ Two OUTPUT wires = Yellow wire(positive pole) + Black wire(negative pole).

Overview

• Brand : Valefod
• Power Source : Corded Electric

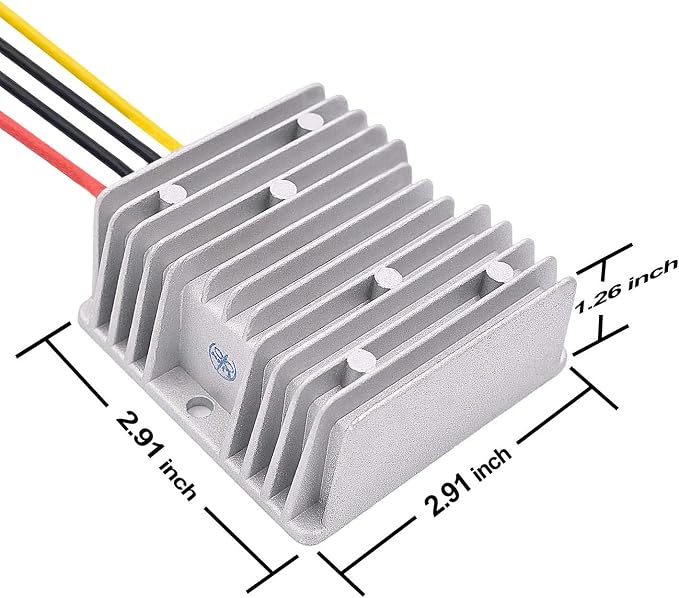

• Product Dimensions : 1.26"D x 2.91"W x 1.26"H
• Mounting Type : Surface Mount
• Current Rating : 20 Amps
