About This

• High Power Output: Delivers a peak power of 640 watts (160W x 4 at 2 ohms, 320W x 2 at 4 ohms bridged) for dynamic sound performance.
• Class A/B Design: Ensures superior audio quality with minimal distortion and high efficiency, ideal for improving your car’s audio system.
• Stable at 2 Ohms: Designed to provide reliable performance even when pushing lower impedance loads, perfect for most car audio setups.
• Advanced Protection Circuitry: Features thermal, overload, and speaker short protection to safeguard your amplifier and audio system.

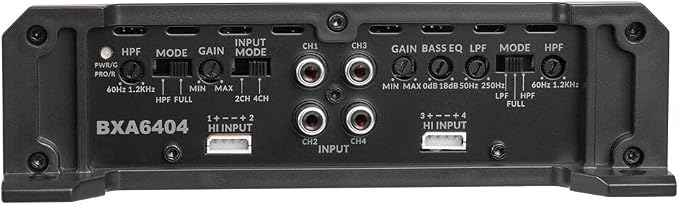

• Versatile Sound Control: Includes variable high-pass (80 - 1,200 Hz) and low-pass (50 - 250 Hz) filters, plus bass boost (0 - 18 dB) to fine-tune your sound.
• Easy Installation: Includes speaker-level (high-level) inputs for simple connection, and a 50A fuse for added security.
• Compact & Efficient: Small footprint (7.48" W x 11.02" L x 2.00" H) fits most vehicles and systems without compromising on performance.
• Premium Build Quality: Built with Pulse Width Modulated (PWM) MOSFET power supply and LED power/protect light for durability and reliability.

Overview

• Voltage : 16 Volts
• Manufacturer : Belva
• Maximum Supply Voltage : 12 Volts (DC)
• Minimum Supply Voltage : 12 Volts
• Mounting Type : Surface Mount
