4S 5S 6S 5A Capacitor Active Equalizer Balancer LiFePO4 LFP Lithium Li-ion Lipo/Titanate LTO Battery Active Energy Transfer Balance Board for Battery Car Audio Group Balancer

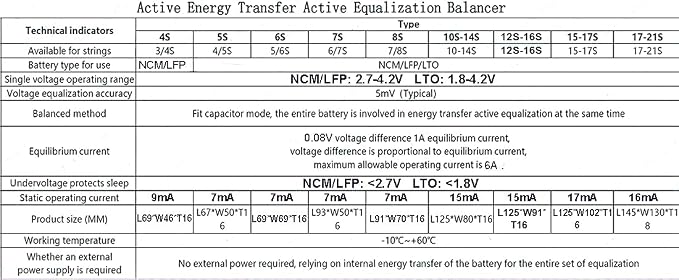

Working Voltage: 1.8V-4.5V, suitable for NCM Ternary polymer lithium battery (Li-ion), lithium iron phosphate battery (LiFePO4), lithium titanate battery (LTO). (Default Not include any batteries.)

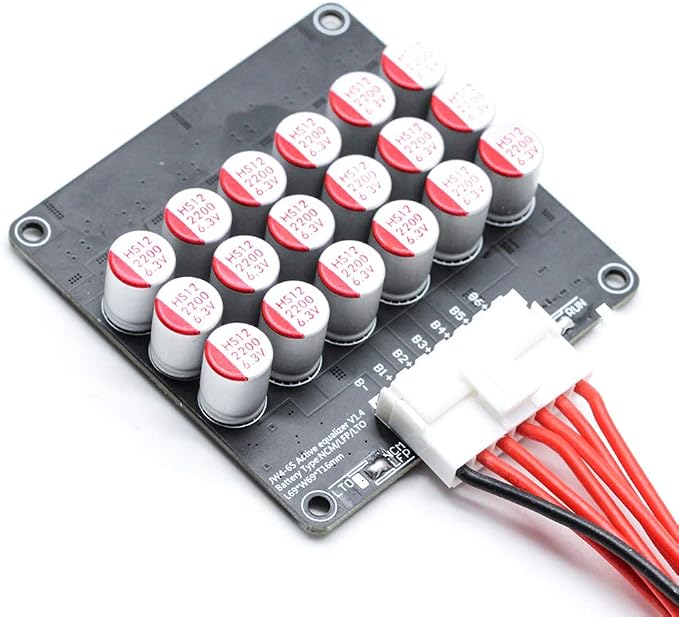

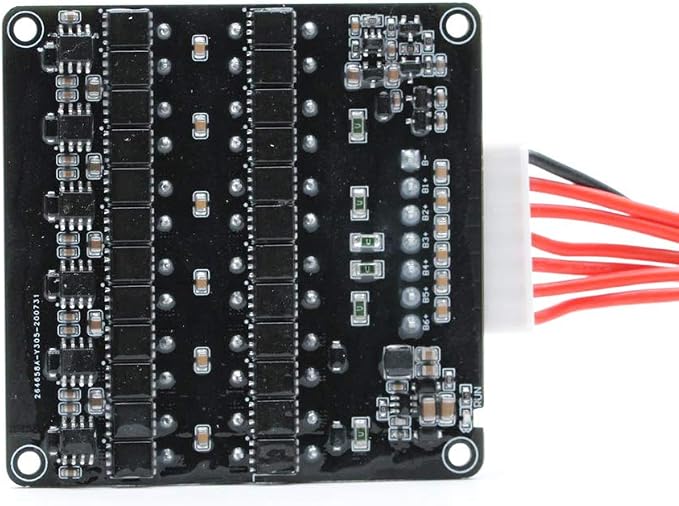

Working Principle: Flying capacitor transfer charge transporter, Balancer board is connected to the battery to start the balance work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB. balance current 0-5.5A, the more balanced the battery current is Small, reserved for the dormant switch wiring position, the dormant power-off mode working current is less than 0.1mA, and the balance voltage accuracy is within 5mv!

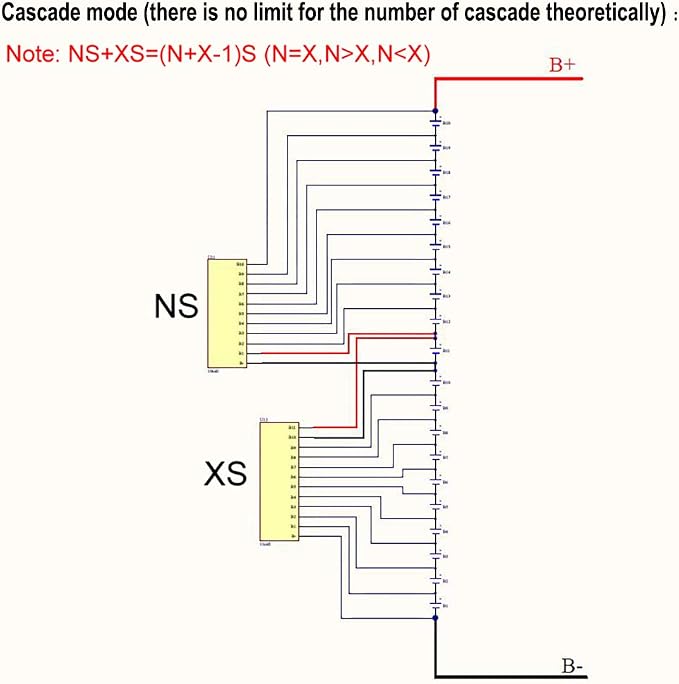

The quiescent current is about 7mA, and the battery capacity is recommended to be used between 30-200AH/Per Balancer.High-capacity batteries can be connected in parallel with multiple equalizers.

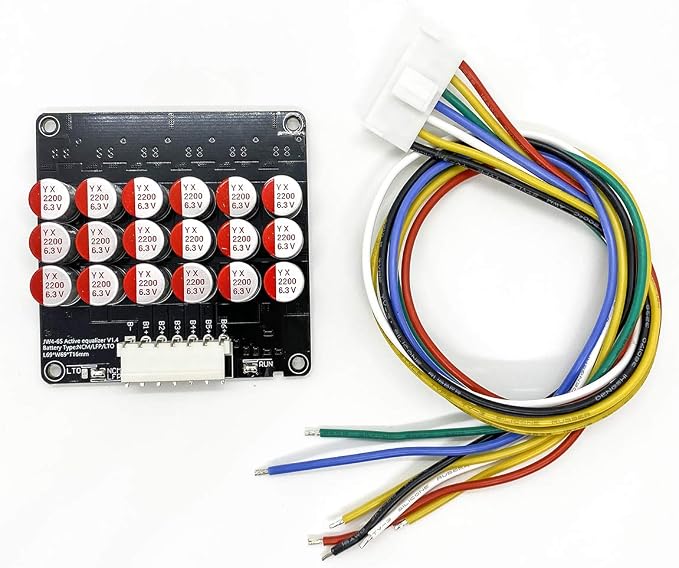

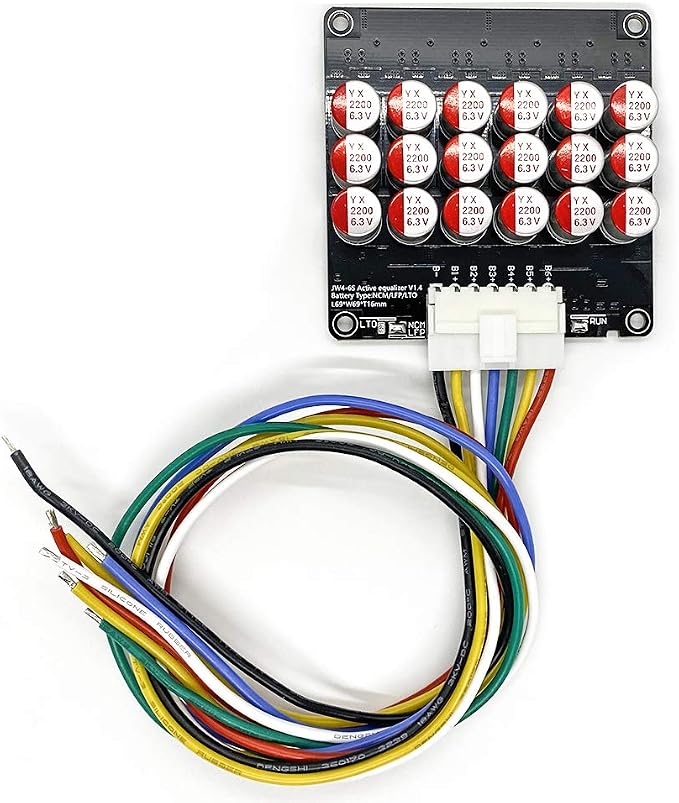

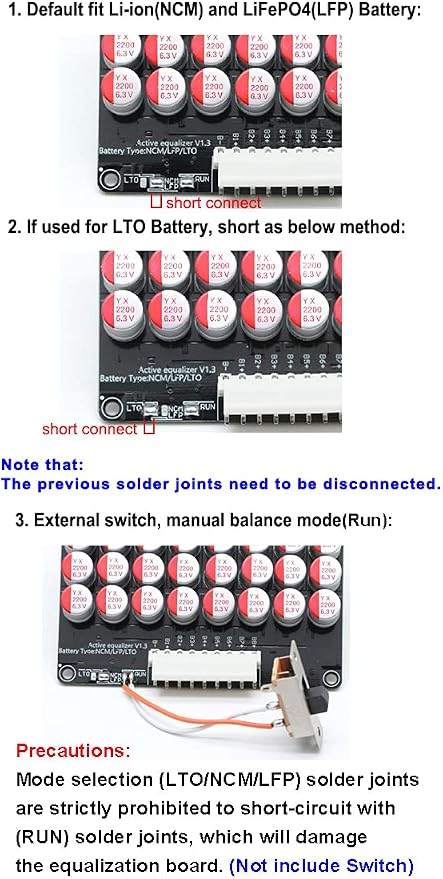

With under-voltage sleep protection, only detecting the B1 battery voltage, the equalizer will automatically stop entering the sleep state when the B1 voltage NCM/LFP<2.7V or LTO<1.8V, and the standby power consumption is less than 0.1mA. Board size: 2.71x2.71x0.63inch, Balance cable length: 15.7inch.

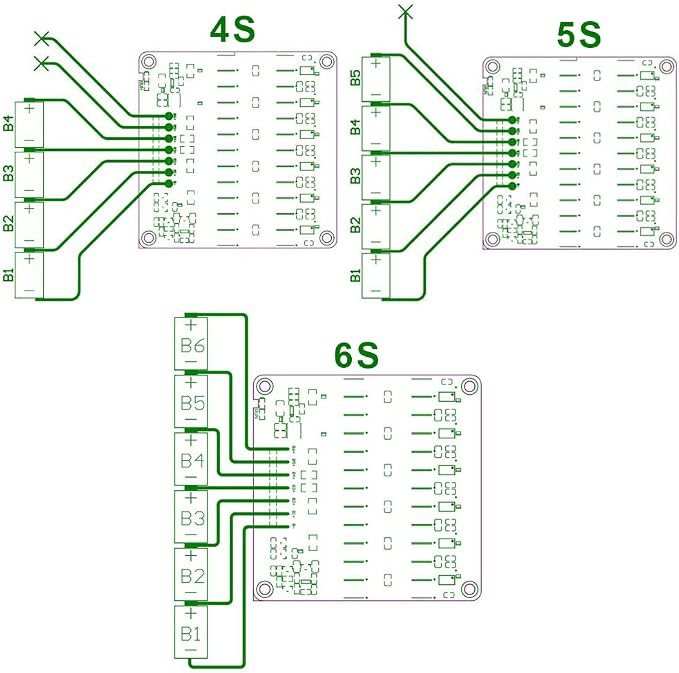

NOTE: Before connect the balance cable to the balance board, be sure to check whether the connections of each section of the battery pack are correct, and do a good job of insulating the bottom of the board and the battery string connection terminals. Otherwise, it will short-circuit and burn the board. Tips: This balancer board is backward compatible by default. eg. If it is used for 5S, the last line B6+ is empty.
Overview
Brand : QINIZX
Color : Black
Item Weight : 0.11 Kilograms
Input Voltage : 25.2 Volts (DC)
Item dimensions L x W x H : 2.71 x 2.71 x 0.63 inches
