• Usage Tips: The voltage gap of each battery must be within 0.5V. When the battery voltage difference does not reach more than 0.1V, the light on the balance board is triggered by mistake. The light actually has no balance current when it lights up, and it will automatically go out after a period of time. So We suggest re-plugging the cable to solve the problem.【Note that】It takes time to equalize the voltage, hot is normal and it does not take effect immediately after plugging it in.

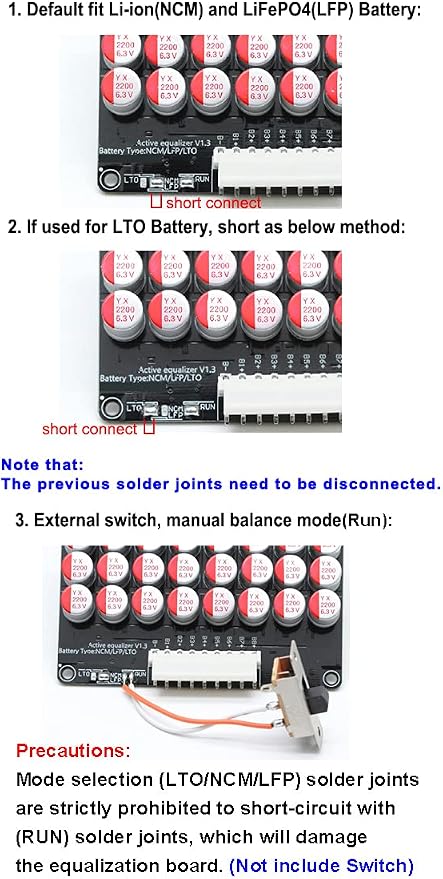

• Working Voltage: 1.8V-4.5V, suitable for NCM Ternary polymer lithium battery (Li-ion), lithium iron phosphate battery (LiFePO4),lithium titanate battery (LTO). 【Tips】When buyers have problems, please be sure to take the initiative to contact us, and trust us have the ability to solve your problems, rather than a direct refund returns. This can prevent many products from being discarded and wasted.
• The quiescent current is about 7mA, and the battery capacity is recommended to be used between 30-200AH/Per Balancer.High-capacity batteries can be connected in parallel with multiple equalizers.
• With under-voltage sleep protection, only detecting the B1 battery voltage, the equalizer will automatically stop entering the sleep state when the B1 voltage NCM/LFP<2.7V or LTO<1.8V, and the standby power consumption is less than 0.1mA. Board size 3.14x2.71x0.63inch; Balance cable length 15.7inch.

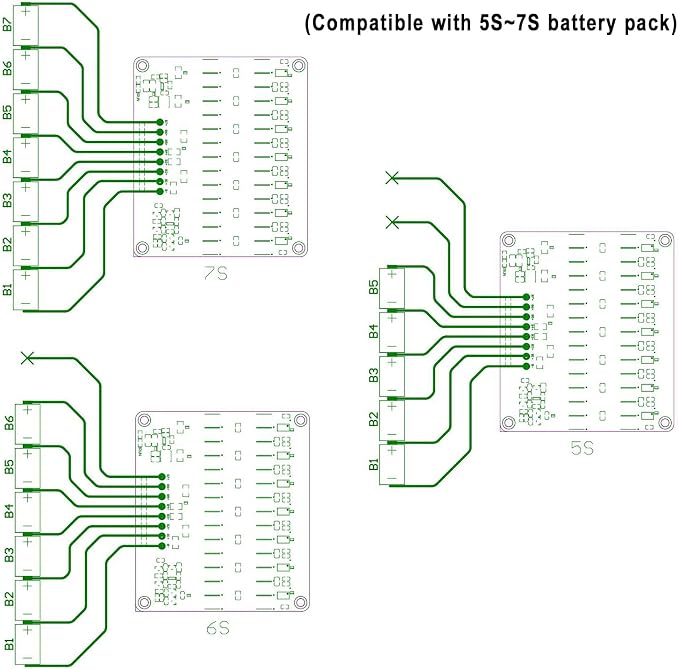

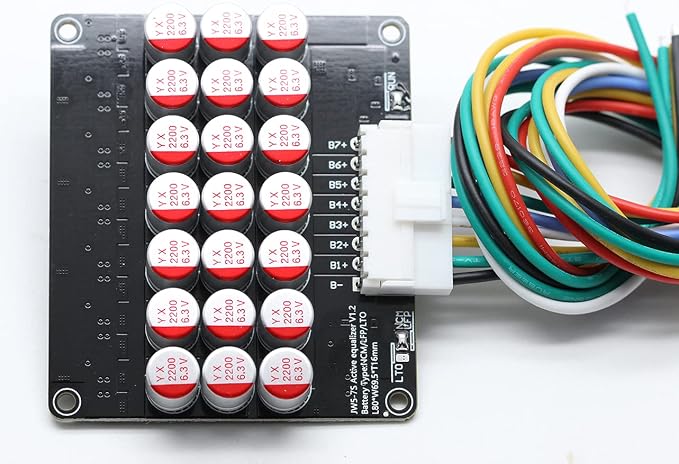

• Note that before connect the balance cable to the balance board, be sure to check whether the connections of each section of the battery pack are correct, and do a good job of insulating the bottom of the board and the battery string connection terminals. Otherwise, it will short-circuit and burn the board. Tips: Compatible with 5S~7S battery pack, eg. If it used for 6S, the last line B7+ is empty.

Overview

• Brand : QINIZX
• Color : Black
• Item Weight : 0.2 Pounds
• Input Voltage : 1.8 Volts (DC)
• Item dimensions L x W x H : 3.14 x 2.71 x 0.63 inches
