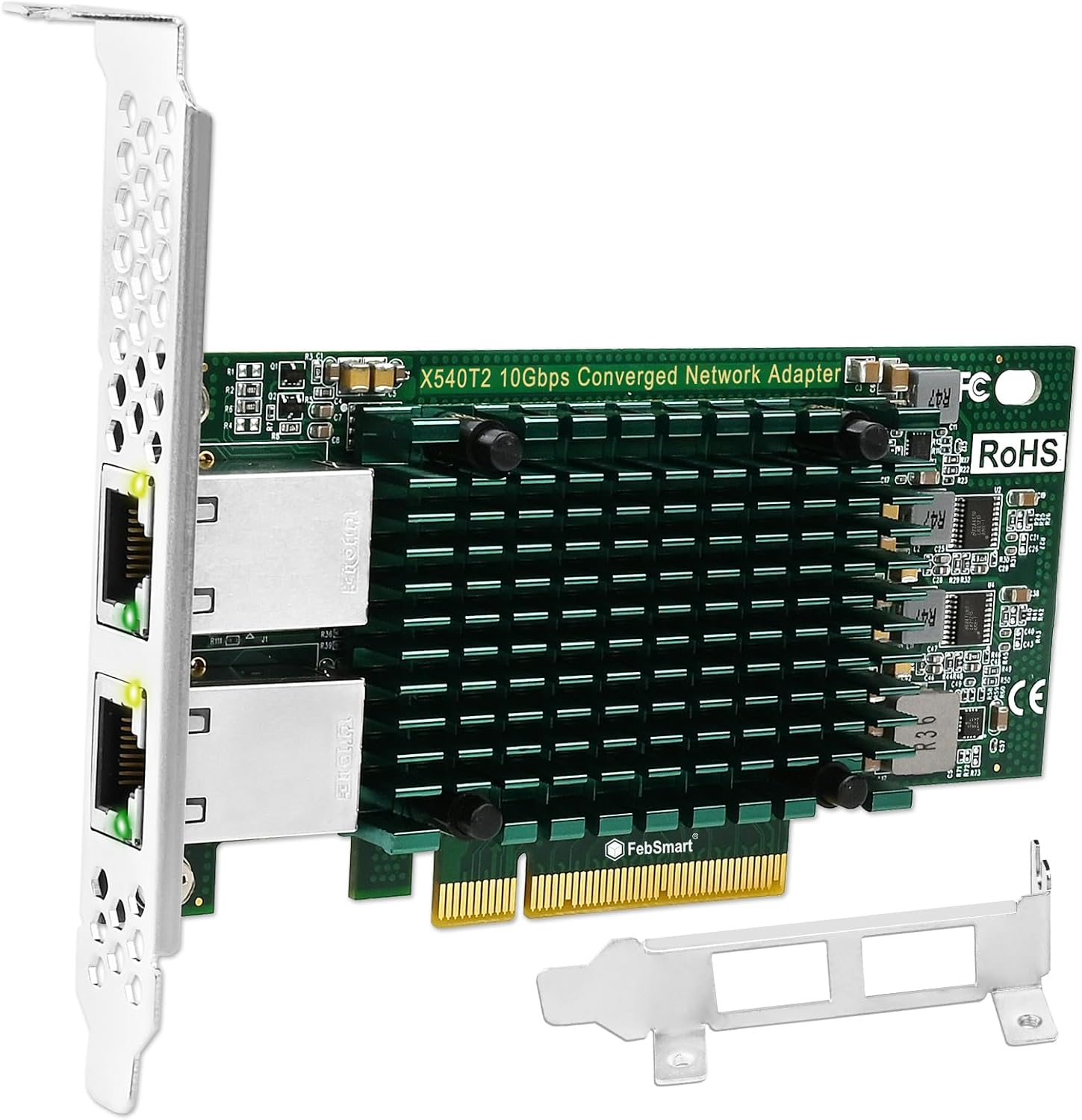

PCIE X8 Interface to 2X 10Gbps RJ45 Ports Network Adapter, Intel X540-AT2 Ethernet Controller, 2X 10GbE RJ45 Interface PCIE NIC Card, PCI Express 10GbE Converged Network Adapter (X540T2)

Overview

• Brand : FebSmart
• Hardware Interface : Ethernet, PCI Express x8
• Color : Green
• Compatible Devices : Desktop
• Product Dimensions : 4.72"L x 5.39"W x 0.72"H
• Data Link Protocol : IEEE 802.3an, 802.3, 802.3u, and 802.3ab
• Data Transfer Rate : 10 Gigabytes Per Second
• Item Weight : 160 Grams
• Manufacturer : FebSmart Co,.Ltd

About this item

• 1. FebSmart X540T2 is a PCI Express X8 interface to 2X 10GbE copper RJ45 ports network adapter. It is based on Intel X540-AT2 10GbE original ethernet controller, will provide stable and super speed 2X 10Gbps ethernet connection on Windows Desktop PCs, Windows Servers, Network Attached Storage (NAS), Soft Router and Linux PCs.

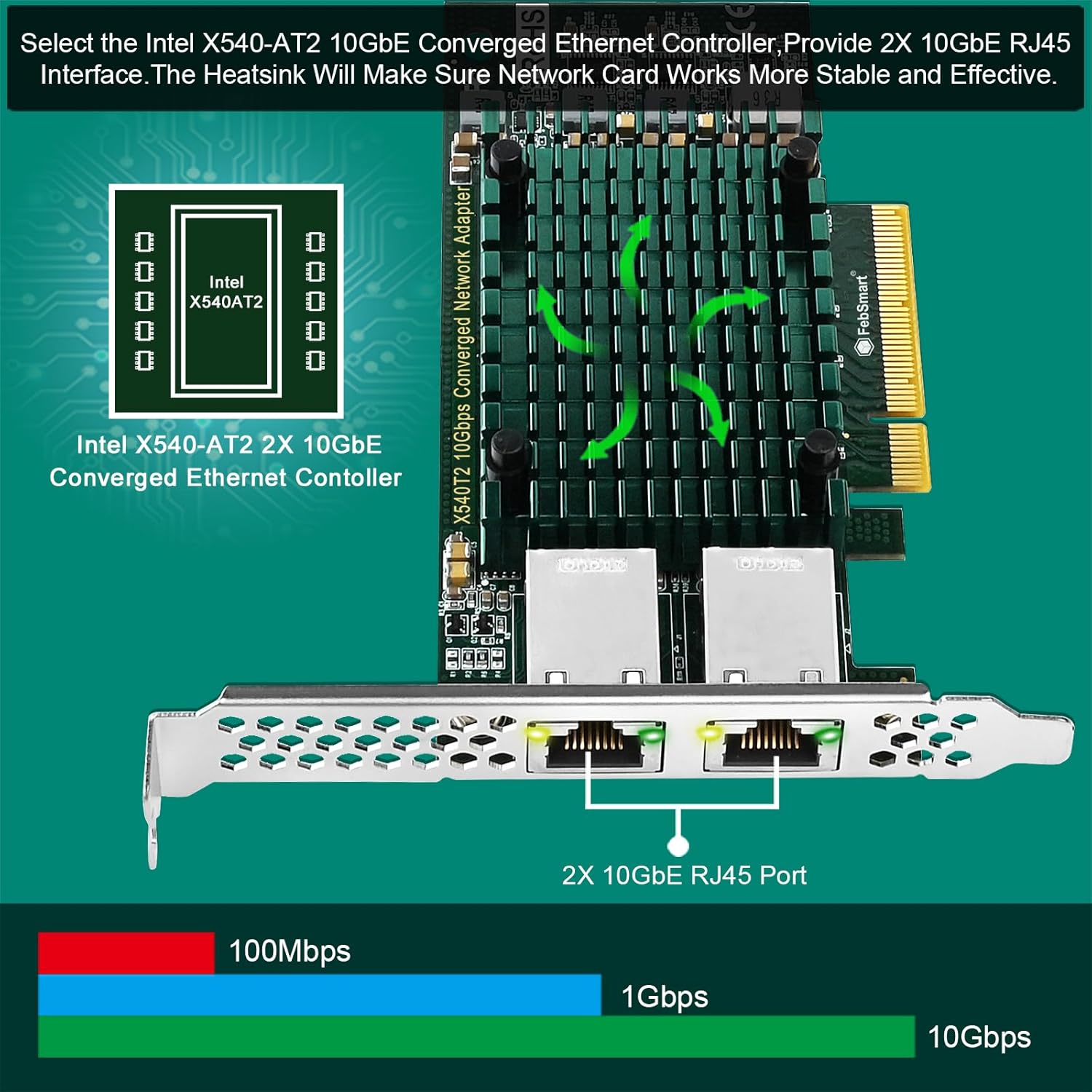

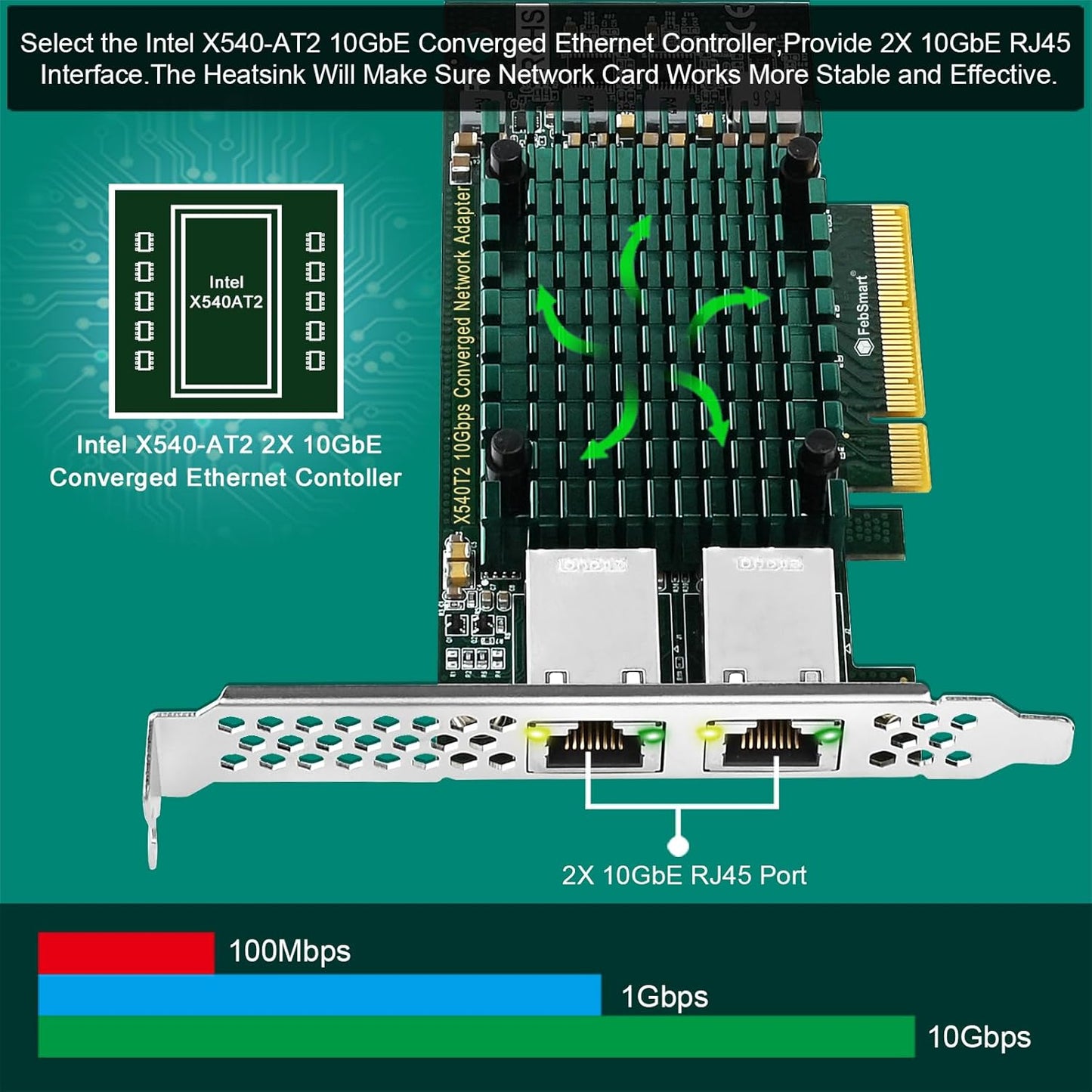

• 2. Network Controller: Intel Ethernet Controller X540-AT2. Data Rate Each Port: 10GbE, 1GbE, 100Mb (10GBASE-T, 1GBASE-T, 100MBASE-T, 10MBASE-T). RJ45 Cable Type: Category 6 up to 55 meters; Category 6A up to 100 meters. System Interface Type: PCIe V2.1 (5.0 GT/s), PCIE X8 Lane Interface. Storage Over Ethernet: iSCSI, FCoE, NFS.
• 3. Supports Wake Up on LAN. Supports PCI-SIG SR-IOV. Supports Virtual Machine Device Queues (VMDq). Supports Flexible Port Partitioning. Supports Intel Data Direct I/O Technology. Supports Simplified I/O Virtualization. Supports IEEE 802.3 Auto-negotiation on IEEE 802.3an, 802.3, 802.3u, and 802.3ab.

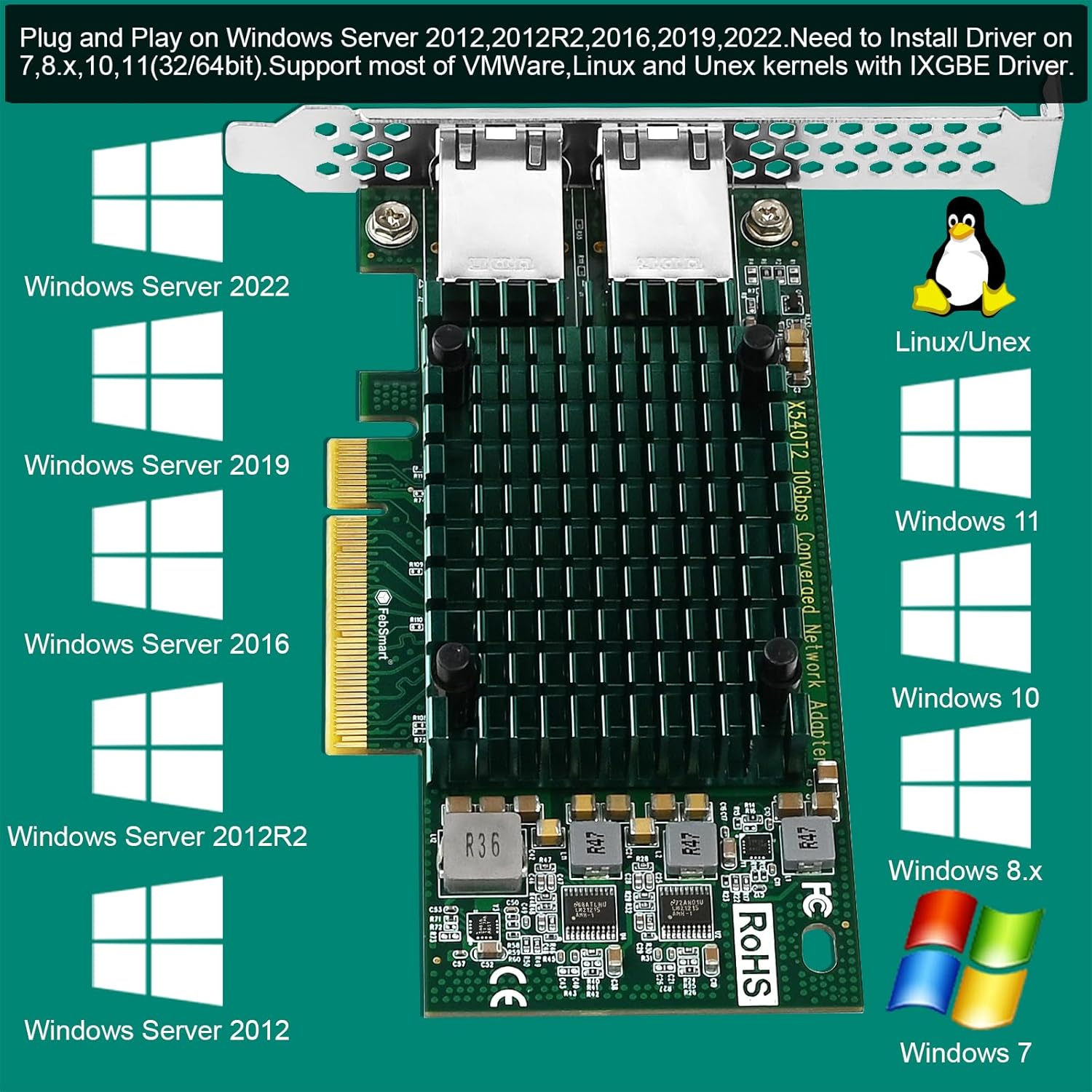

• 4. Compatible Systems: 1. Windows Server 2022, 2019, 2016, 2012R2, 2012 and Windows 11, 10, 8.x, 7 (32/64bit). 2. Linux kernels drivers IXGBE. 3. RHEL 7.9, RHEL 8.4 / 8.5, RHEL7.0 to 7.8 and 8.0 to 8.3. 4, SLES 12 SP5, SLES 15 SP3, SLES 12 SP4 and previous, 15 SP2 and previous. 5, Ubuntu 18.04 and later, Ubuntu 20.04, and later. 6. FreeBSD 12.2, 13, 12.1 and previous.
• 5. ATTENTION: 1. PCIE X8 interface design, works on PCIE X8, X16 sot. Users must check if PCs have active and open PCIE X16 (X8 Lane or X16 Lane) slot before purchase. 2. Low profile bracket in the package and full height bracket mounted on this network adapter. Users need change to low profile bracket if using slim PCs. 3. Users must make sure the PCIE X16 slot have X8 or X16 lane, or the X540T2 cannot get expected 2X 10GbE max speed.
