JKBMS Smart BMS 3S-8S 100A 1A Active Balancer JK-B1A8S10P | JK BMS for LiFePO4 Li-ion LTO batteries with Bluetooth RS485 and multi protection system

JKBMS Smart BMS 3S-8S 100A 1A Active Balancer JK-B1A8S10P | JK BMS for LiFePO4 Li-ion LTO batteries with Bluetooth RS485 and multi protection system

$118.78 USD
$118.78 USD
Shipping calculated at checkout.

About This

  • 1A ACTIVE BALANCING: Energy transfer technology delivers 1A continuous balancing current, effectively reducing cell voltage drift in 3S-8S packs
  • 100A CONTINUOUS POWER: Rated for 100A continuous and 200A peak current. Ideal for 12V/24V trolling motors and portable power boxes

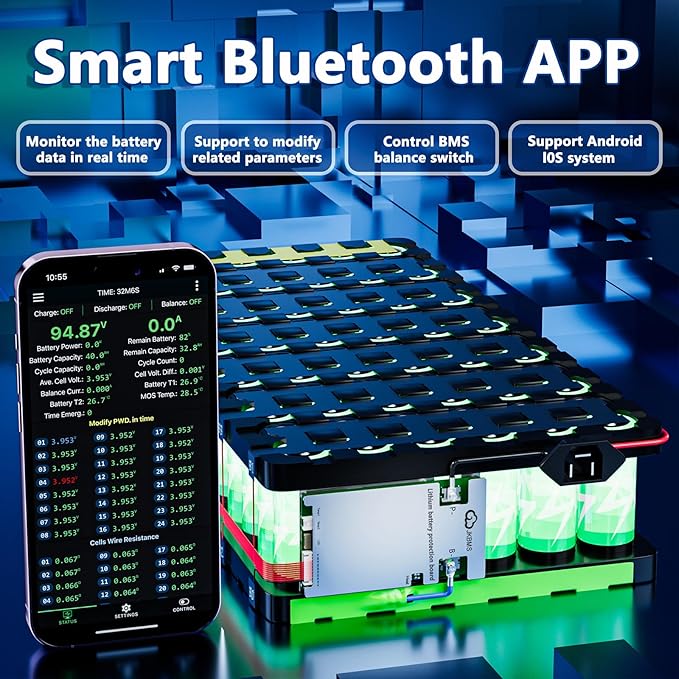

  • SMART APP CONTROL: Connect via Bluetooth to monitor high-precision voltage (±3mV) and configure parameters on the JKBMS App
  • HARDWARE SAFEGUARDS: Features built-in short-circuit protection (5us delay), over-charge, and temperature anomaly protections
  • STANDBY EFFICIENCY: Intelligent sleep mode activates below 1A current to reduce battery drain, plus a 30-minute emergency bypass switch

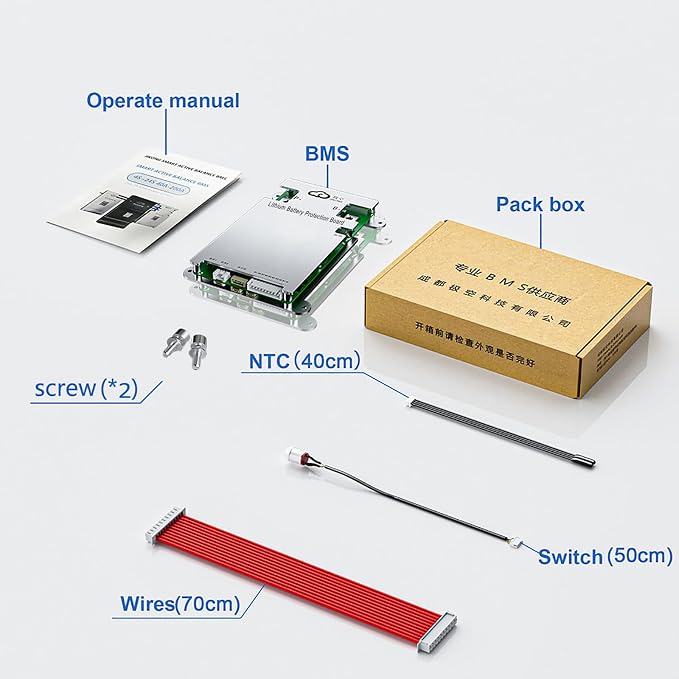

  • COMPLETE KIT & WARRANTY: What's in the box: 1x Smart BMS (JK-B1A8S10P), 1x Active Balance Wire, 1x Activation Switch, 1x NTC Sensor, 2x Screws, 1x User Manual. Backed by expert support

Overview

  • Brand : JKBMS
  • Color : JK BMS
  • Item Weight : 9.12 ounces
  • Input Voltage : 24 Volts
  • Item dimensions L x W x H : 5.94 x 4.14 x 0.61 inches
