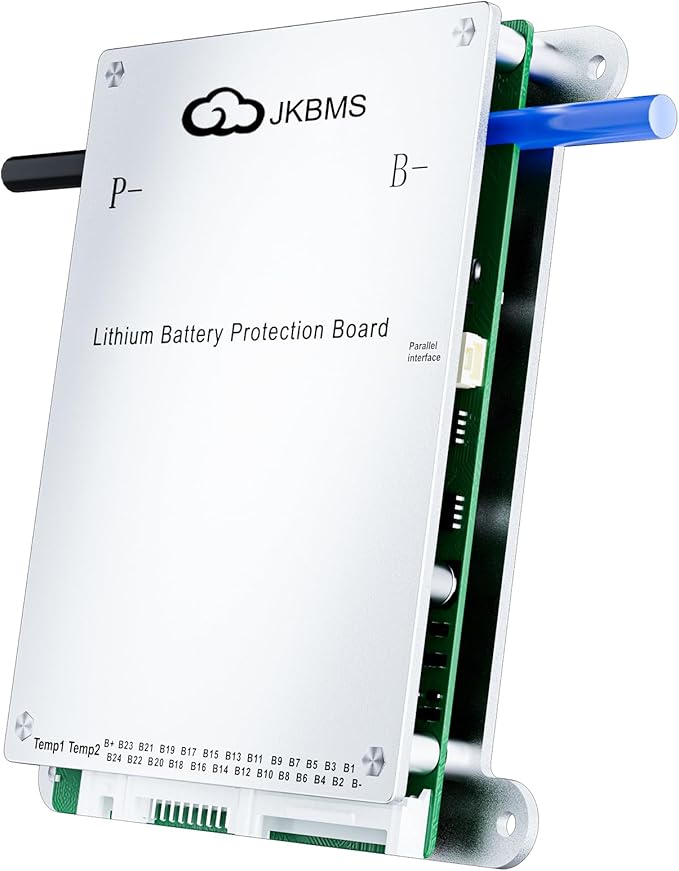

JKBMS Smart BMS 8S-20S 40A Active Balancer JK-BD4A20S4P | JK BMS for LiFePO4 Li-ion LTO batteries with Bluetooth and RS485, 0.4A active balancing and multi protection system

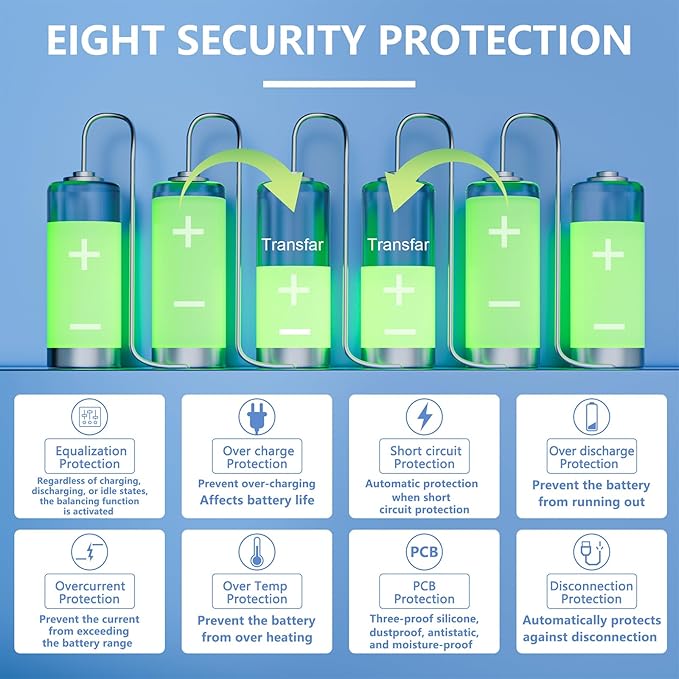

Enhanced Safety: Safeguard your battery with protection against overcharging, overdischarging, overcurrent, short circuits, and temperature extremes. JKBMS Active Equalization extends battery life and enhances performance

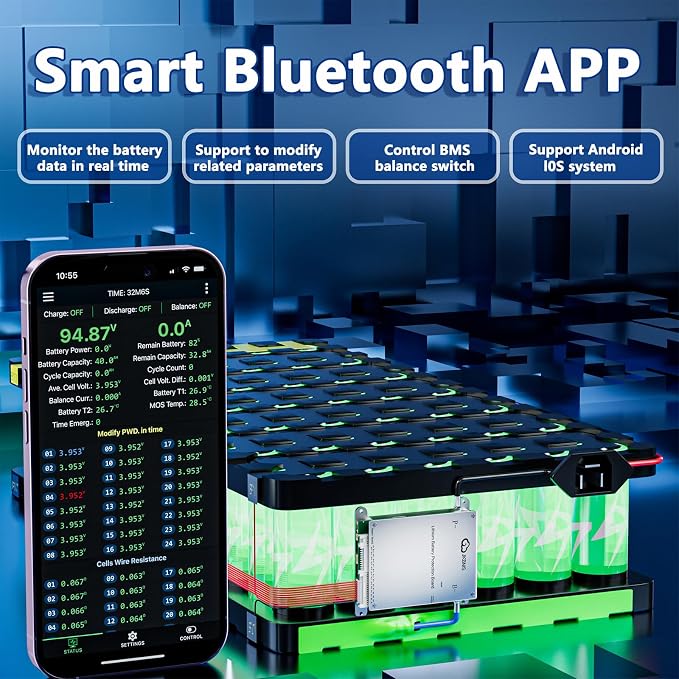

Easy Connection: Effortlessly manage your battery with JK BMS mobile app for Android and iOS. Bluetooth connectivity allows you to monitor status, adjust settings, and control charging/discharging from your device
Wide Application: This versatile BMS works with Li-ion, LiFePO4, and LTO batteries. Suitable for electric motorbike, electric scooter, and other applications, it offers seamless integration and top performance

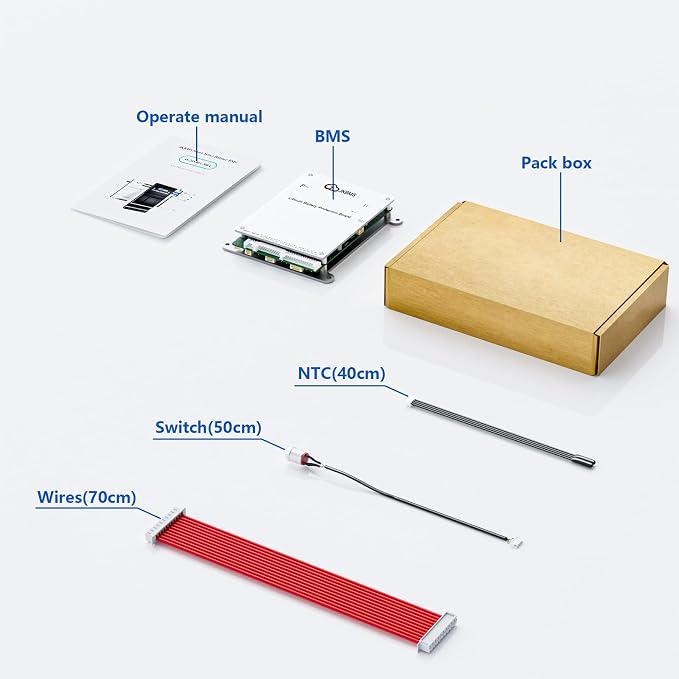

Packing List: Includes Smart BMS (JK-BD4A20S4P) * 1, Wires (70cm) * 1, Switch (50cm) * 1, NTC (40cm) * 1, Operate manual * 1, (RS485 converter not included). Everything you need for setup and operation

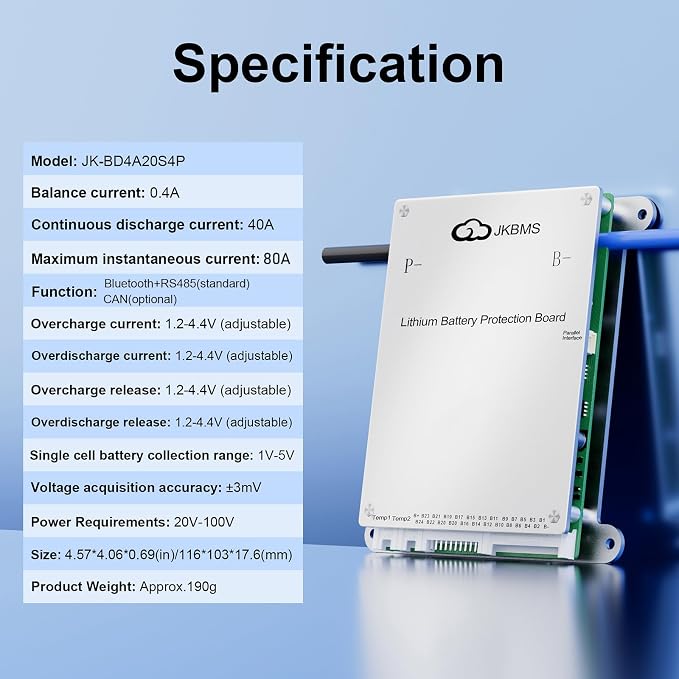

Technical Specifications: Features 8S-20S battery string compatibility, 40A continuous current capacity, 0.4A active balance current, built-in Bluetooth, RS485 interface, and temperature sensor for comprehensive battery management
Smart Monitoring Features: Real-time battery monitoring with mobile app connectivity enables remote configuration, parameter adjustment, and system diagnostics for optimal battery pack performance and longevity
Overview
Brand : JKBMS
Color : JK BMS
Item Weight : 6.72 ounces
Input Voltage : 60 Volts
Item dimensions L x W x H : 4.57 x 4.06 x 0.69 inches
