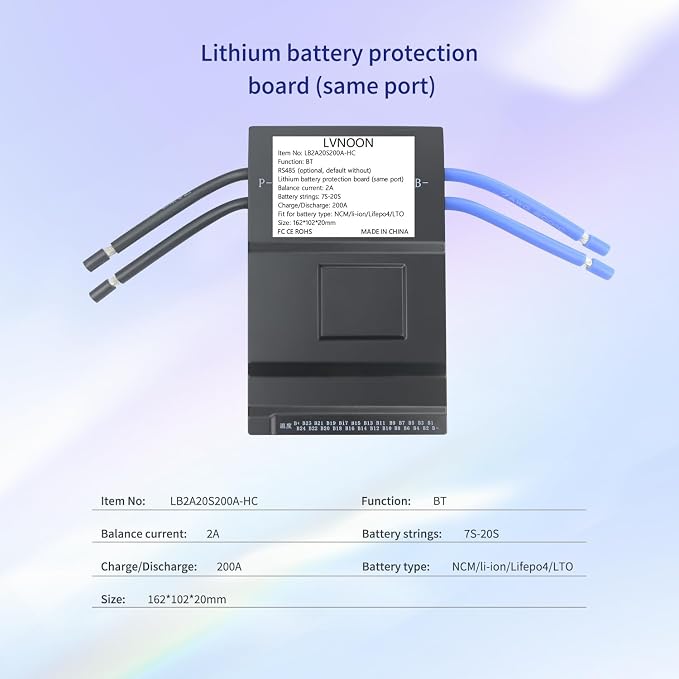

• LVNOON LB2A series Smart active balance BMS lithium battery protection board fit for Li-ion NCM LFP LiFePo4 LTO Battery Management System 3S to 24S 150A 200A 300A Continuous charge/discharge current available to choose with smartphone APP control
• Suitable for 1V-5V Li-ion NCM LFP/LiFePo4 LTO battery types. Support series connection, suitable for 3-8S,7-20S, 7--24S stings battery packs with voltage 12V to 84V usage.
• All in protection: With Balanced protection, over charge protection, over discharge protection, over current protection, short circuit protection, temperature protection, PCB protection, Disconnection protection protect your battery better.
• Support Single battery cell voltage range 1V~5V, equalization accuracy ±5mV with high precision voltage acquisition (≤20mV) & high precision current acquisition (≤2%@FS) and Isolated power circuit

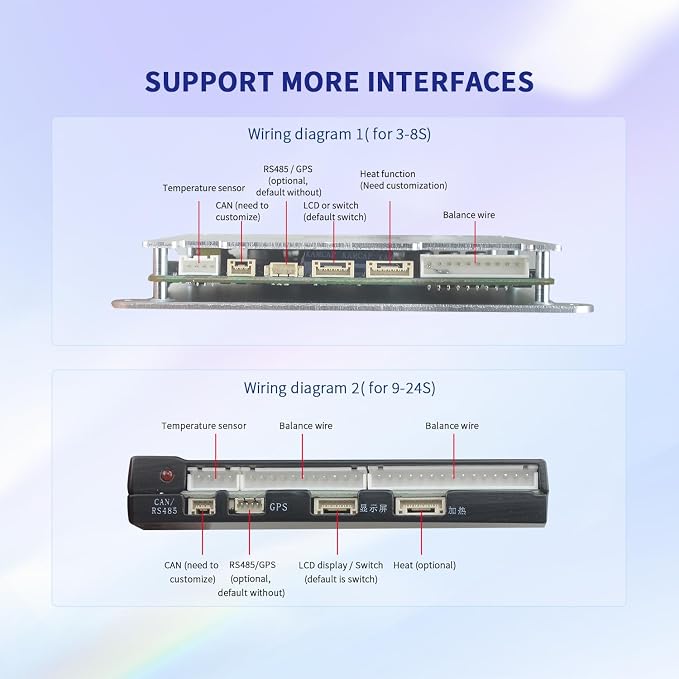

• Support more communication: Can add extra RS485 module / GPS module /LCD displays to work with the LVNOON smart active BMS together. If you need "CAN function" or "heat function", please contact us in advance.

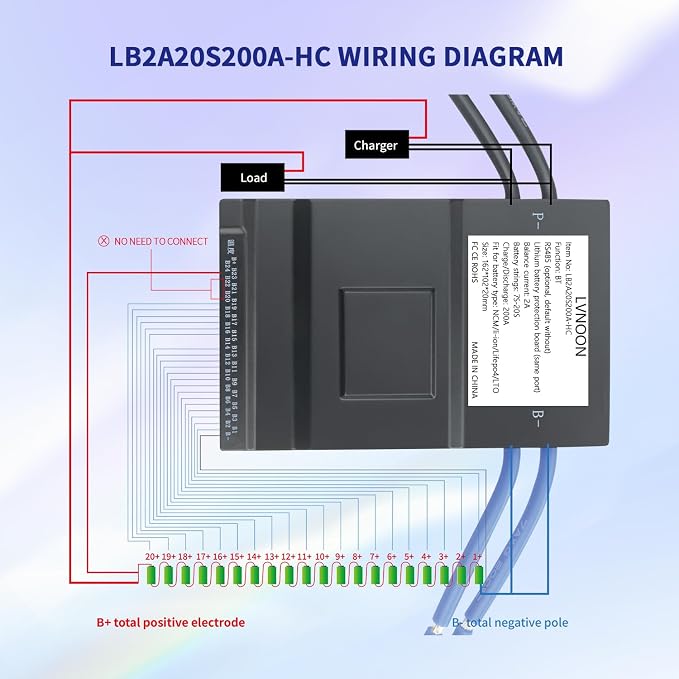

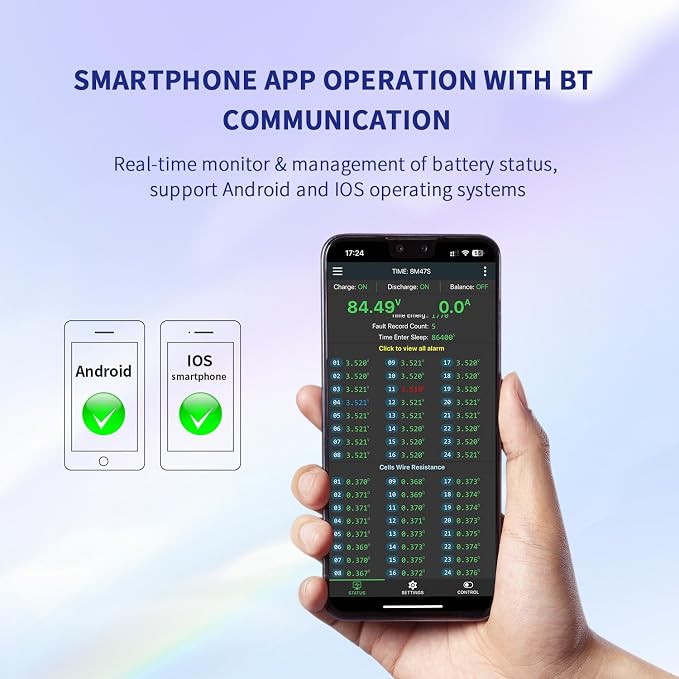

• Easy to Use: 1. Weld the wires 2. Download the APP & use switch to activate the BMS 3. Turn on smartphone BT and find the relevant serial number to check all the battery data. The smartphone app fit for IOS & Android smart phones

Overview

• Brand : LVNOON
• Color : 7-20S with Heat + CAN

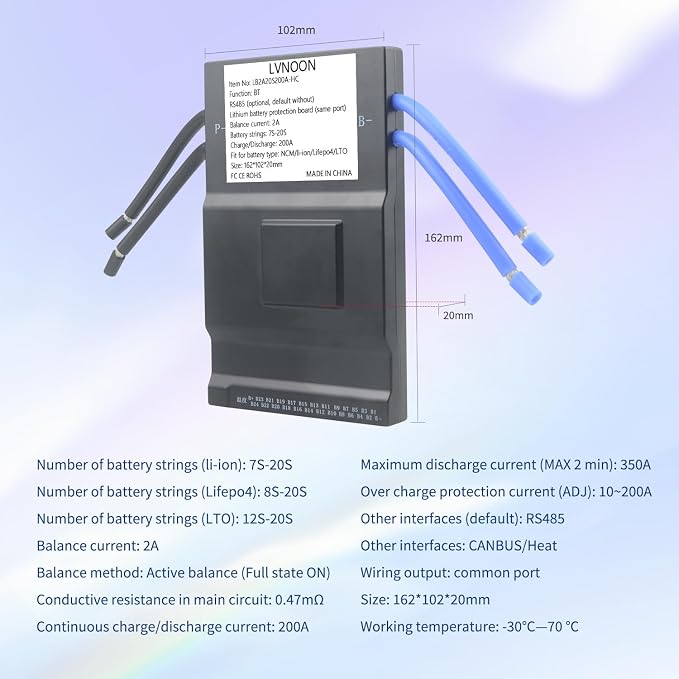

• Product Dimensions : 0.79"D x 4.02"W x 6.38"H
• Item Weight : 0.6 Kilograms
• Output Voltage : 72 Volts
