2A ACTIVE BALANCING: Maximize large-capacity cell performance. 2A continuous energy transfer balancing effectively minimizes voltage drift in 12V/24V battery packs
200A HIGH OUTPUT: Rated for 200A continuous and 400A peak discharge. Safely manages battery packs engineered to supply heavy-duty inverters
HC EDITION: CAN & HEATING: Integrates a CAN communication bus and a 20A heating circuit to ensure your battery pack charges safely in freezing sub-zero environments

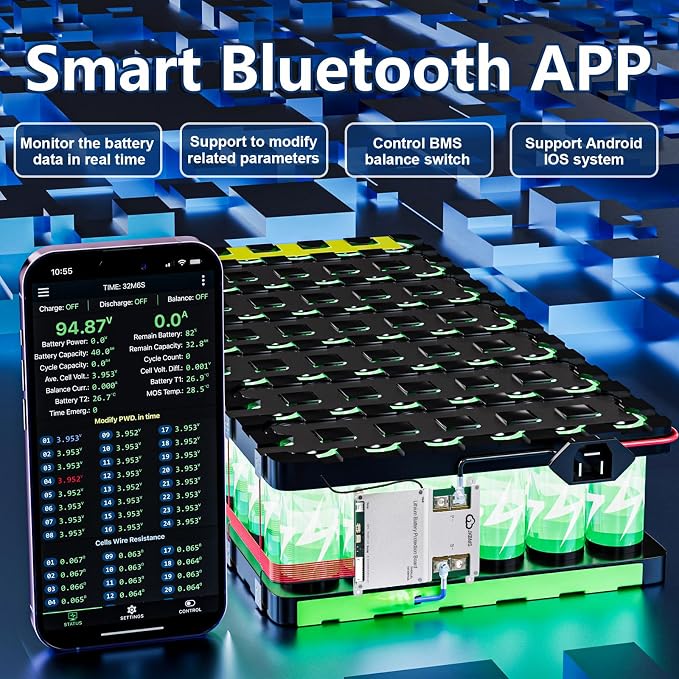

SMART APP CONTROL: Connect via Bluetooth to track precise cell voltage (±3mV) and customize thermal parameters directly on the official JKBMS App

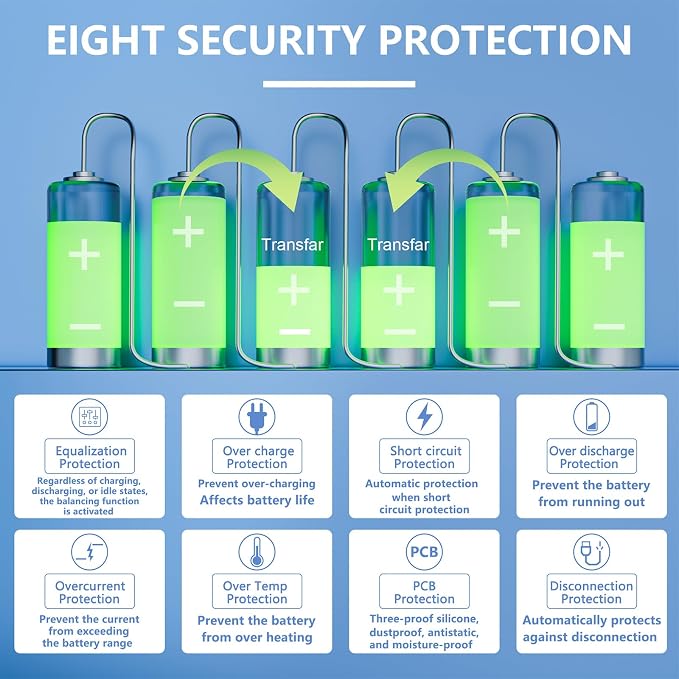

PROFESSIONAL DEFENSES: Thorough hardware protections against short-circuits (5us delay), over-charge, and thermal risks to secure your high-capacity cell build

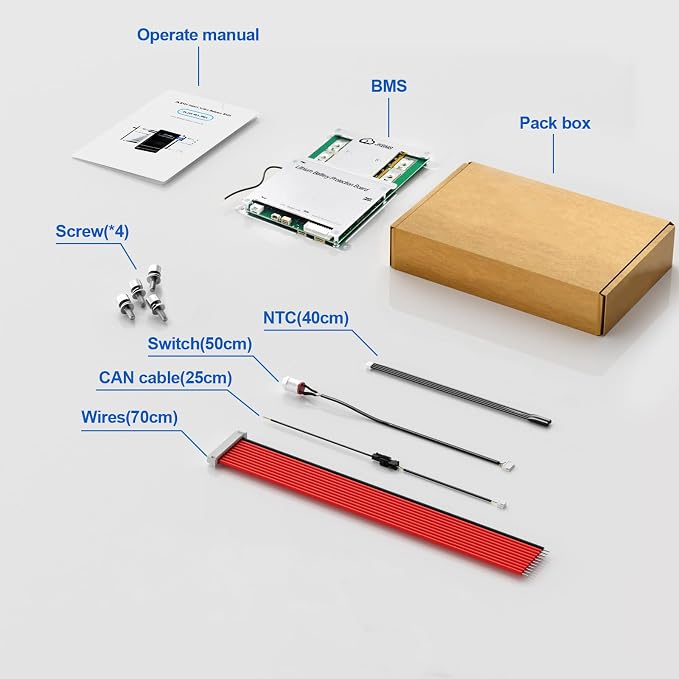

COMPLETE KIT & WARRANTY: What's in the box: 1x Smart BMS (JK-B2A8S20P-HC), 1x Active Balance Wire, 1x Activation Switch, 1x NTC Sensor, 1x CAN cable, 1x Heating cable, 4x Screws, 1x User Manual. Backed by expert support
Overview
Brand : JKBMS
Color : JK BMS
Item Weight : 10.88 ounces
Input Voltage : 24 Volts
Item dimensions L x W x H : 5.99 x 5.01 x 0.61 inches
