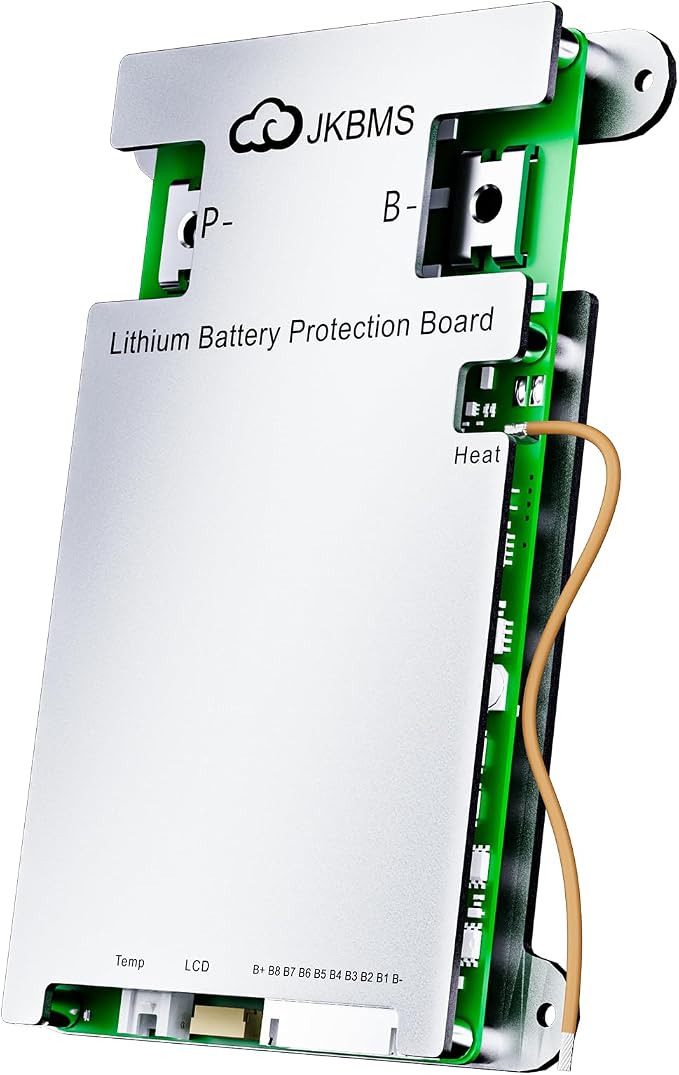

JKBMS Smart BMS 3S-8S 100A 1A Active Balancer JK-B1A8S10P-HC | JK BMS for LiFePO4 Li-ion LTO batteries with Bluetooth RS485 CAN heating function and multi protection
1A ACTIVE BALANCING: Proprietary technology provides a 1A balancing current, managing cell consistency for 12V/24V battery packs
100A CONTINUOUS POWER: Handles 100A continuous and 200A peak discharge, scaled for lightweight campervans and marine appliances
HC EDITION WITH HEATING & CAN: Equipped with a CAN communication interface and a dedicated 20A heating circuit to keep cells active in freezing climates

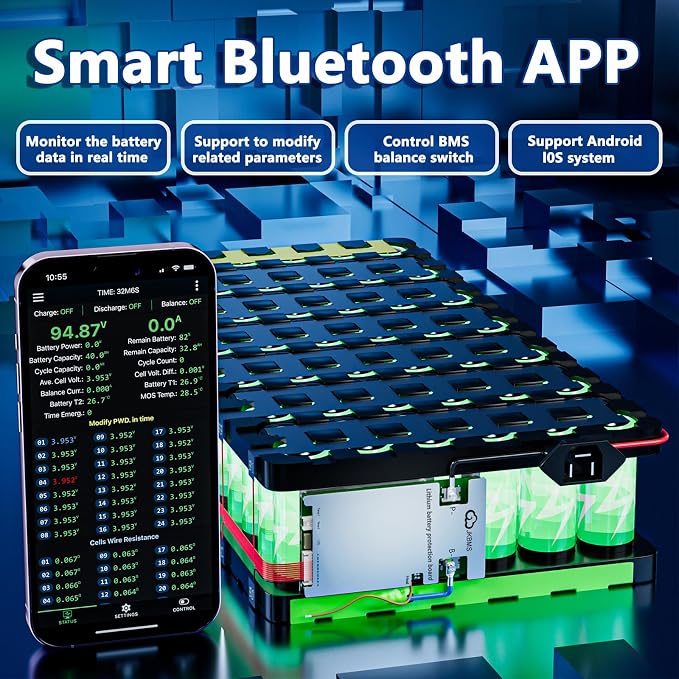

BLUETOOTH APP CONNECTIVITY: Track precise system data with 3mV accuracy directly on your smartphone via the official JKBMS App

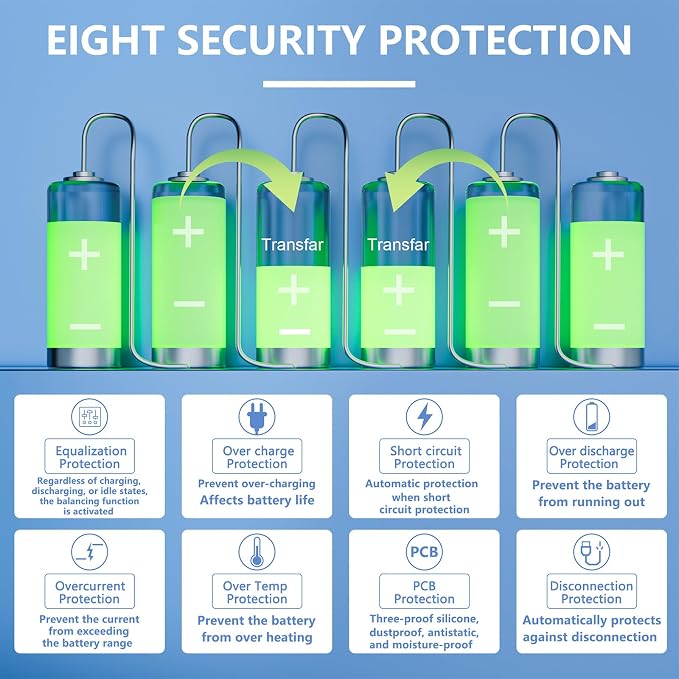

ENGINEERED RELIABILITY FEATURES: Includes comprehensive hardware protections, intelligent sleep mode, and a 30-minute emergency bypass switch

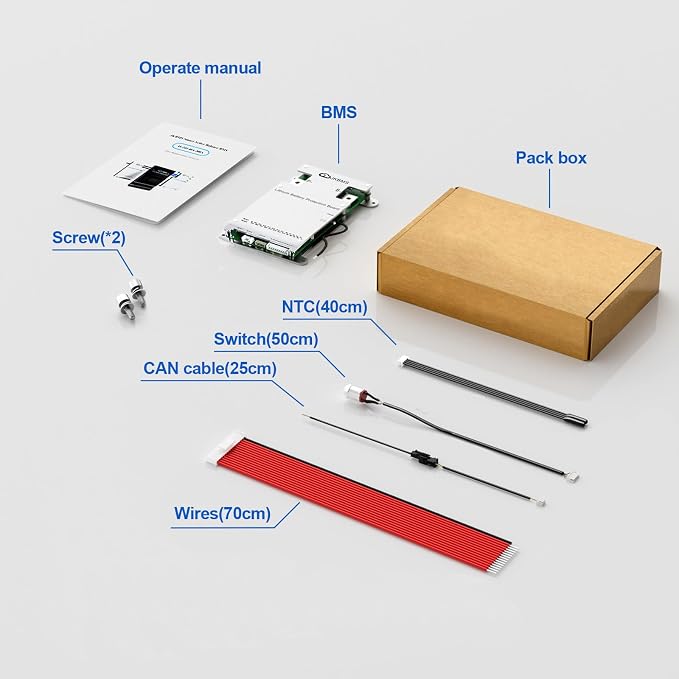

COMPLETE KIT INCLUDED: Package contains 1x Smart BMS (JK-B1A8S10P-HC), 1x Active Balance Wire, 1x Activation Switch, 1x NTC Sensor, 1x CAN cable, 1x Heating cable, 2x Screws, 1x User Manual with expert support
WIDE COMPATIBILITY RANGE: Supports 3S-8S configurations for LiFePO4, Li-ion, and LTO battery chemistries with voltage range from 12V to 24V systems
ADVANCED COMMUNICATION PROTOCOLS: Features CAN bus and RS485 interfaces for seamless integration with inverters and advanced battery management systems

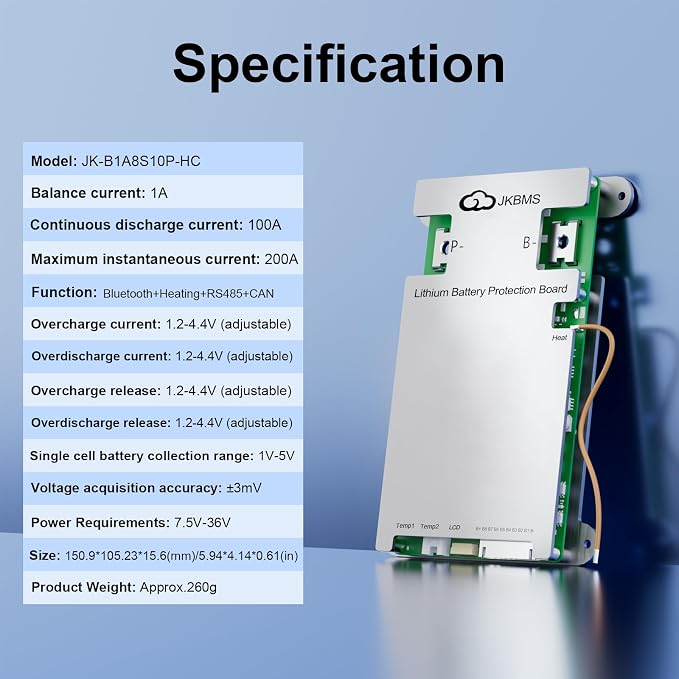

Overview
Brand : JKBMS
Color : JK BMS
Item Weight : 9.12 ounces
Input Voltage : 24 Volts
Item dimensions L x W x H : 6.06 x 4.21 x 0.69 inches
