About This

• Robust Terminals & Electrical Ratings: Each busbars 12 volt features 6 x 5/16" (M8) terminal studs. And this power distribution block is capable of handling up to 48V DC, with maximum current 250A
• Unique Round Corner Base Design: The 12V bus bar includes a distinctive round corner base, enhancing both aesthetic appeal and stability of our 12v power distribution block, setting it apart from standard bus bars.

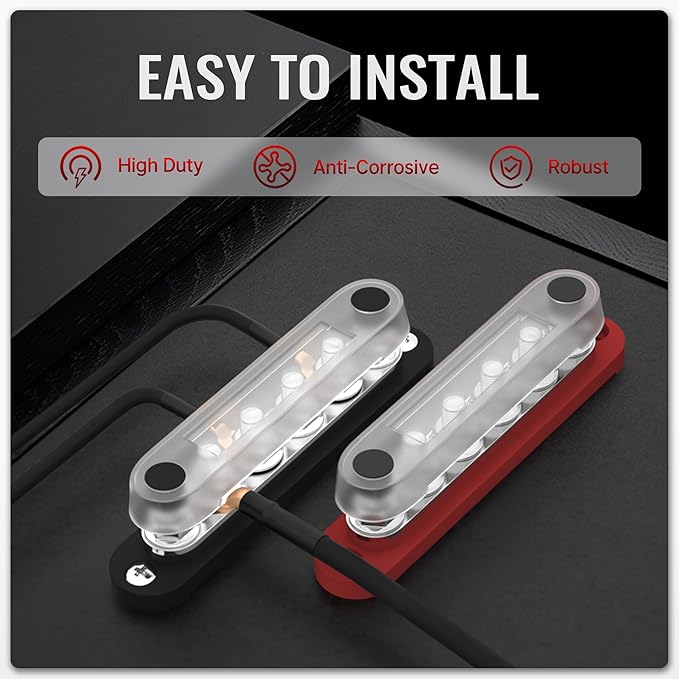

• More Open Area Cover Design: The cover of our battery distribution block allows for 180° wire lug installation, supporting various connection methods, which increases installation flexibility for users.

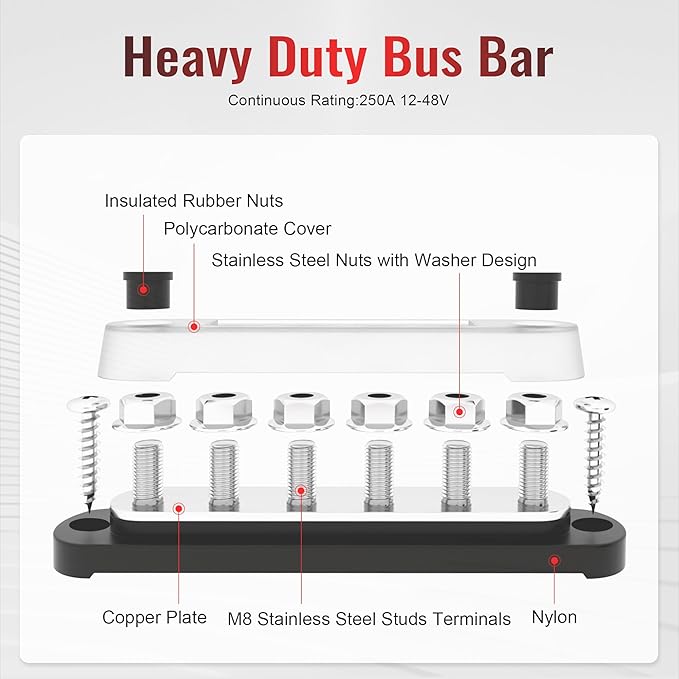

• Suitable for Extreme Environments: Constructed with copper plates and stainless steel terminals as conductors, this 12v distribution block is designed to perform reliably in harsh conditions, making it ideal for automotive, marine, and other demanding applications.

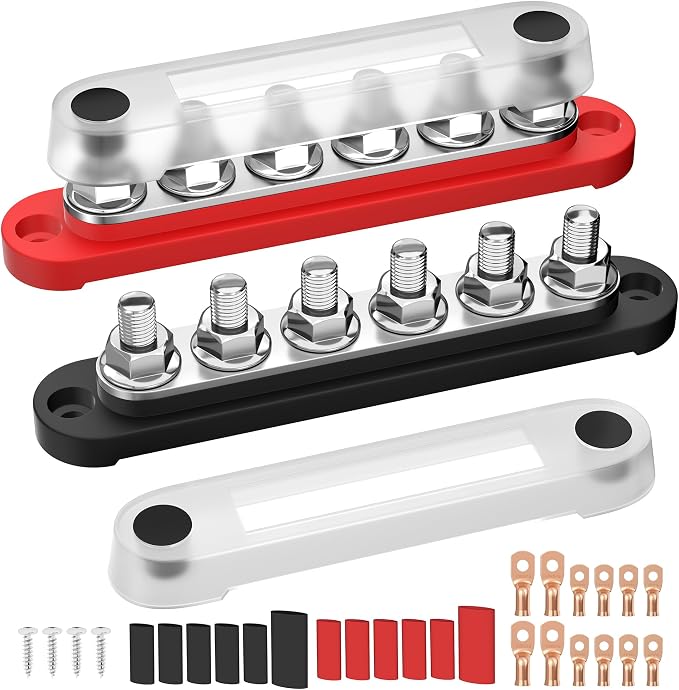

• Efficient Power Distribution Design: This battery bus bar terminal block 12v comes in pairs, including one positive (red) and one negative (black) bus bar. Also, it is equipped with 12 copper ring lugs and 12 heat shrink tubes for your need, designed for efficient power distribution.

Overview

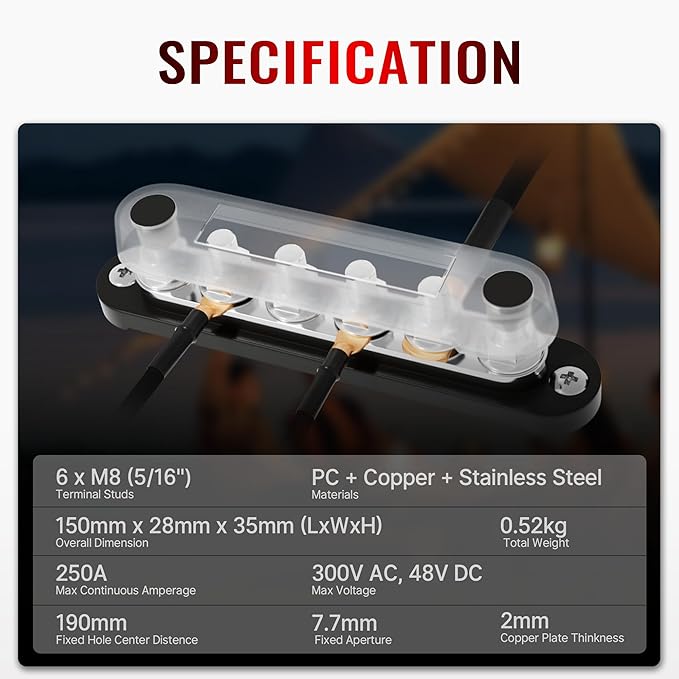

• Current Rating : 250 Amps
• Connector Type : Terminal Block
• Number Of Contacts : 12
• Mounting Type : Panel Mount
• Material : PC + Copper + Stainless Steel
• Brand : RVMARINEPAT
• Number Of Poles : 6
• Number of Items : 2
• Manufacturer : RVMARINEPAT
• Unit Count : 2.0 Count
