About This

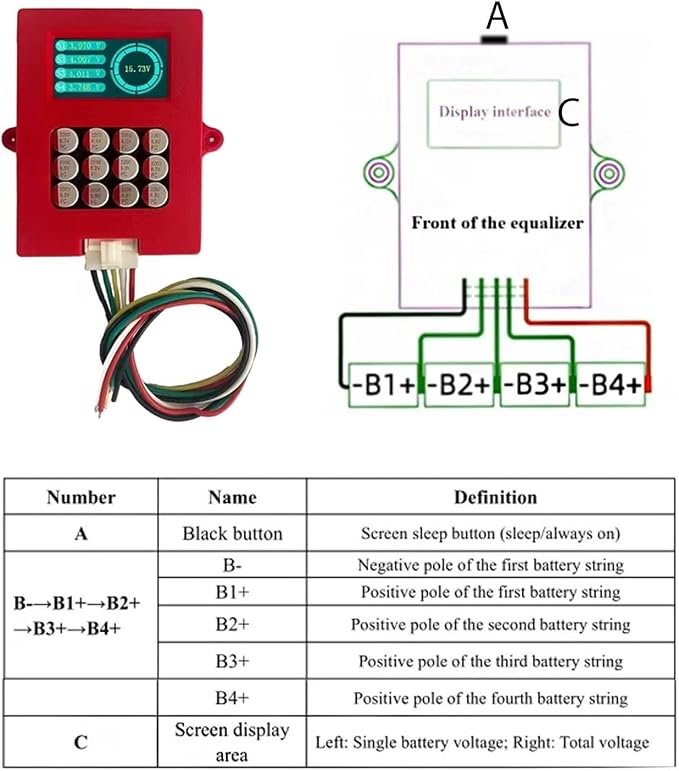

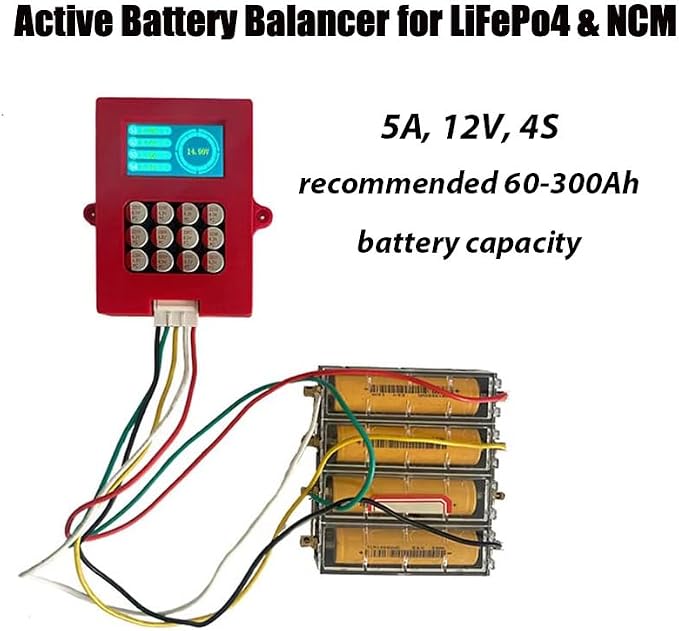

• Compatibility: Active battery balancer works with LiFePO4 (LFP) and NCM (ternary lithium) batteries, 4 string, working voltage 1.8-4.5V, capable of full-group, non-discriminatory equalization, recommended battery capacity 60-300Ah

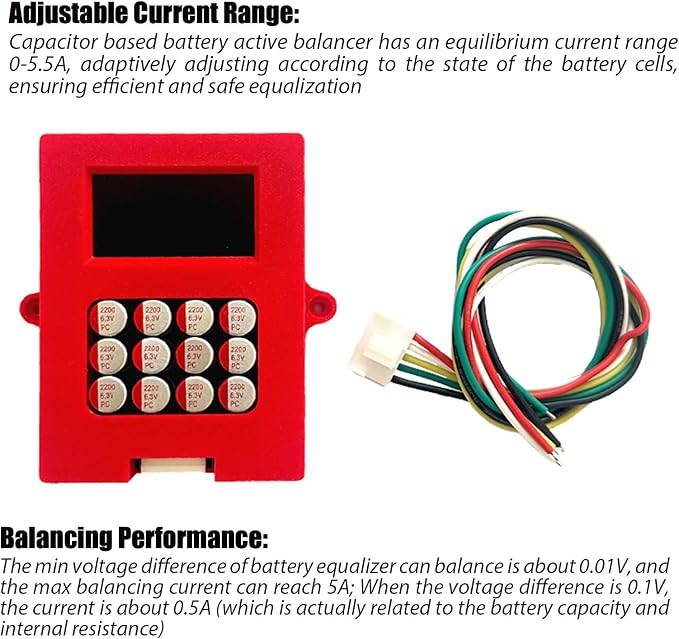

• Balancing Performance: The min voltage difference of battery equalizer can balance is about 0.01V, and the max balancing current can reach 5A; When the voltage difference is 0.1V, the current is about 0.5A (which is actually related to the battery capacity and internal resistance)
• Adjustable Current Range: Capacitor based battery active balancer has an equilibrium current range 0-5.5A, adaptively adjusting according to the state of the battery cells, ensuring efficient and safe equalization

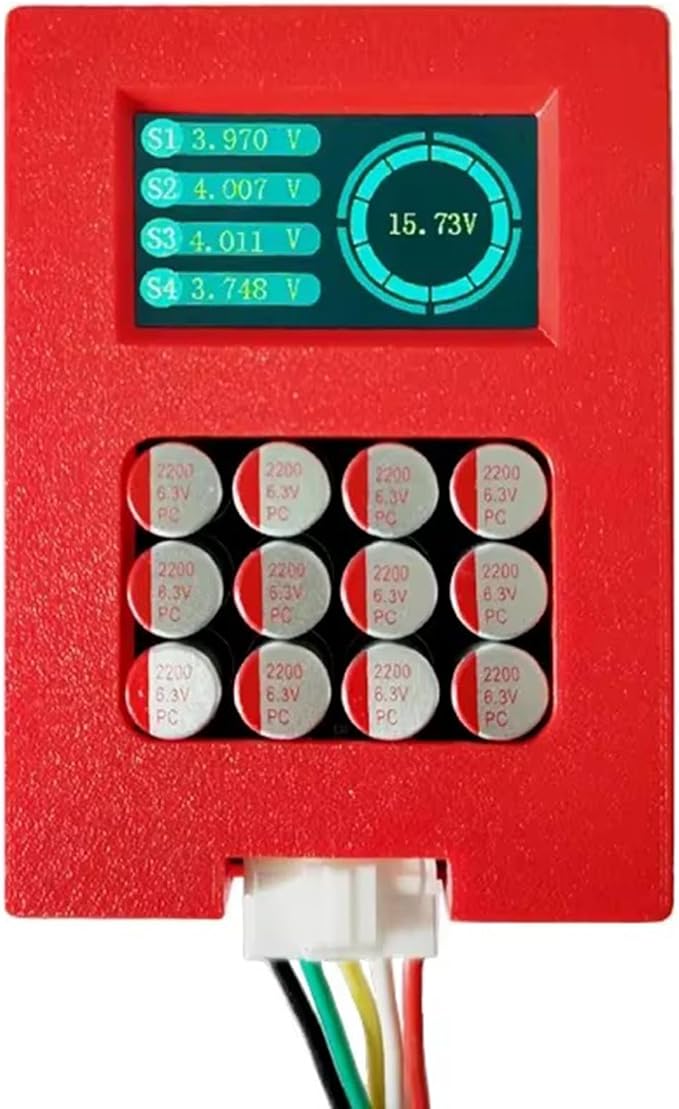

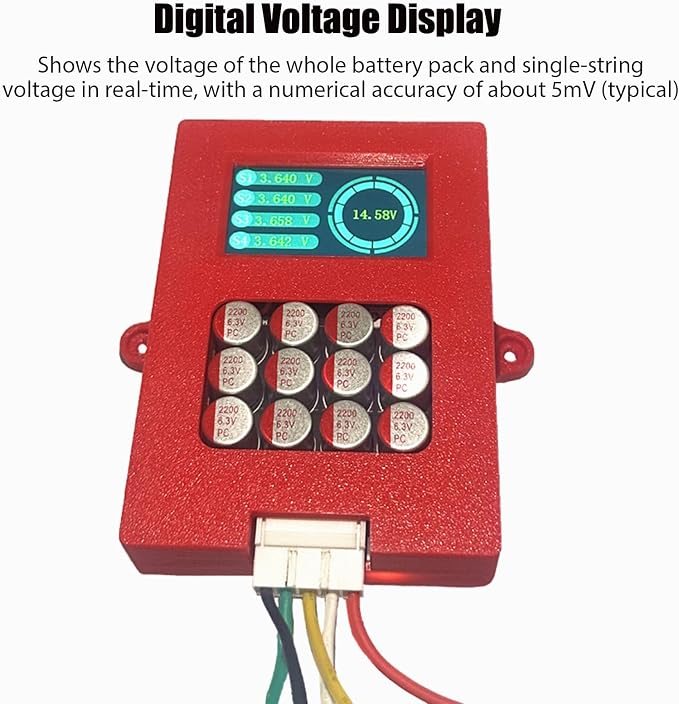

• Voltage Display: The battery voltage display screen of active battery balancer can show the voltage of the whole battery pack and single-string voltage in real-time, with a numerical accuracy of about 5mV (typical)

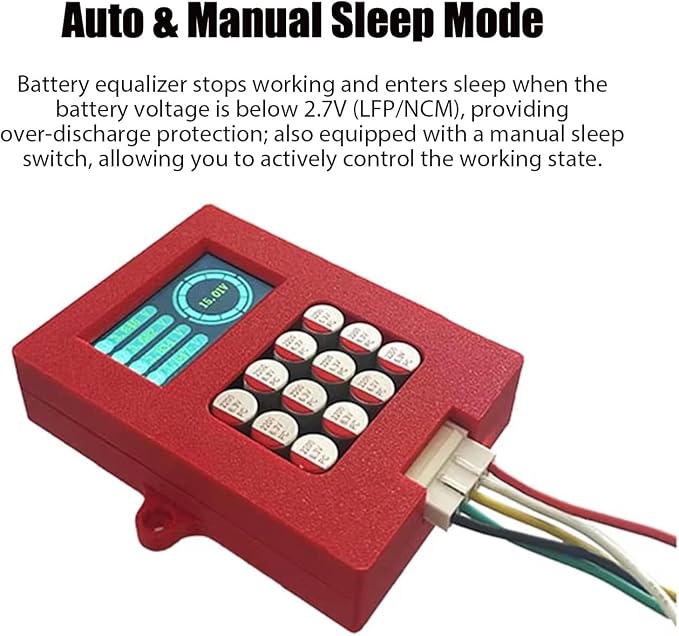

• Automatic Sleep: Battery equalizer stops working and enters sleep when the battery voltage is below 2.7V (LFP/NCM), providing over-discharge protection; also equipped with a manual sleep switch, allowing you to actively control the working state

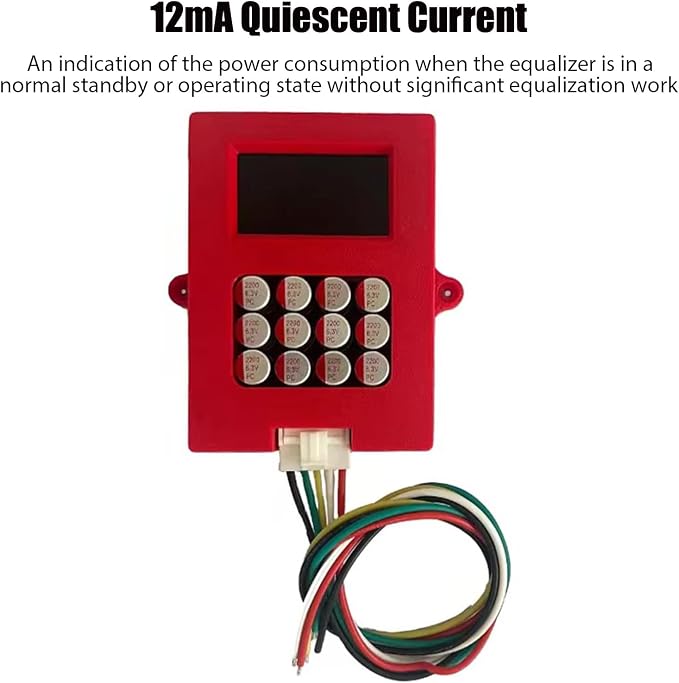

• Quiescent Current: The quiescent current is about 12 mA, which gives an indication of the power consumption when the equalizer is in a normal standby or operating state without significant equalization work
• Quality Components: Active battery balancer equipped with ultra-low internal resistance MOS and 2OZ copper thickness PCB, reducing power loss and enhancing the electrical conductivity and heat dissipation

Overview

• Brand : VQP
• Color : Red
• Input Voltage : 12 Volts
• Output Voltage : 12 Volts (DC)
• Plug Format : Type A or Type B
