About This

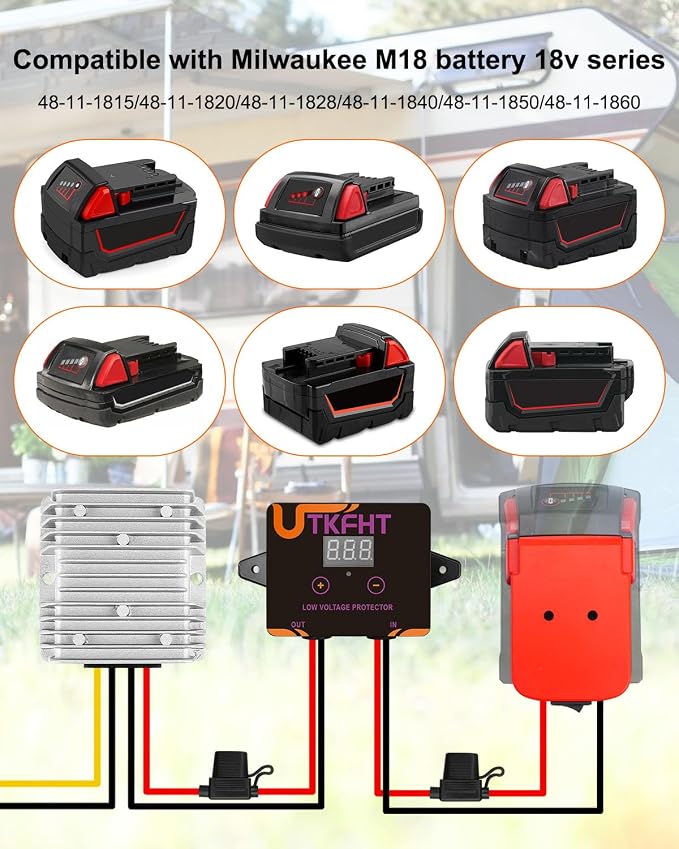

• Perfect Compatibility: Power wheel battery adapter is compatible with Milwaukee M18 battery 18v series 48-11-1815/48-11-1820/48-11-1828/48-11-1840/48-11-1850/48-11-1860

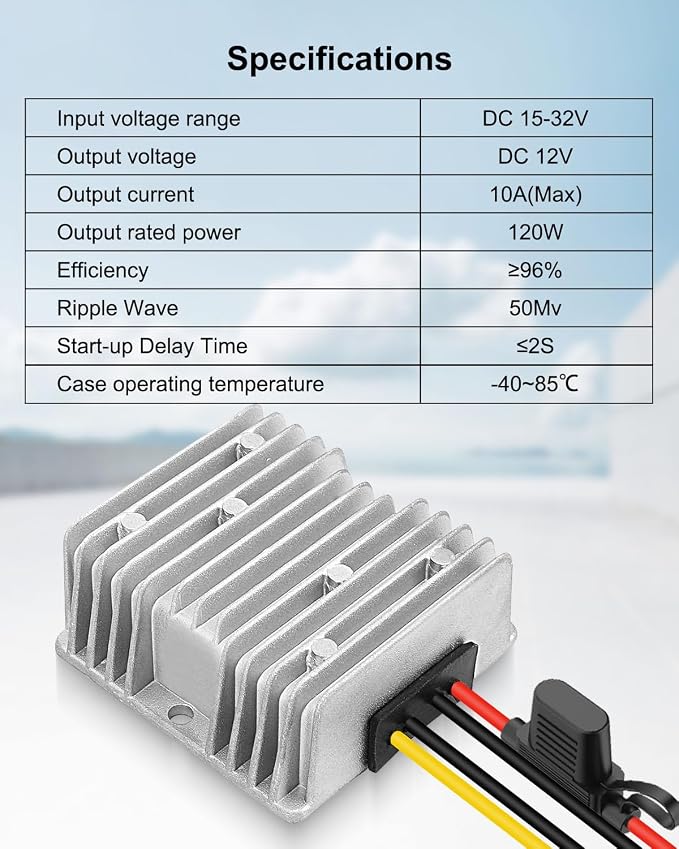

• Precise Specifications: Input voltage range: DC 15V-32V, Output voltage: DC 12V, Output current: Max 10A, Output power: 120W. Utilizing synchronous rectification technology, our buck converter enhances conversion efficiency and stability, achieving up to 96% efficiency, with a ripple of 50mV and a startup delay of ≤2S

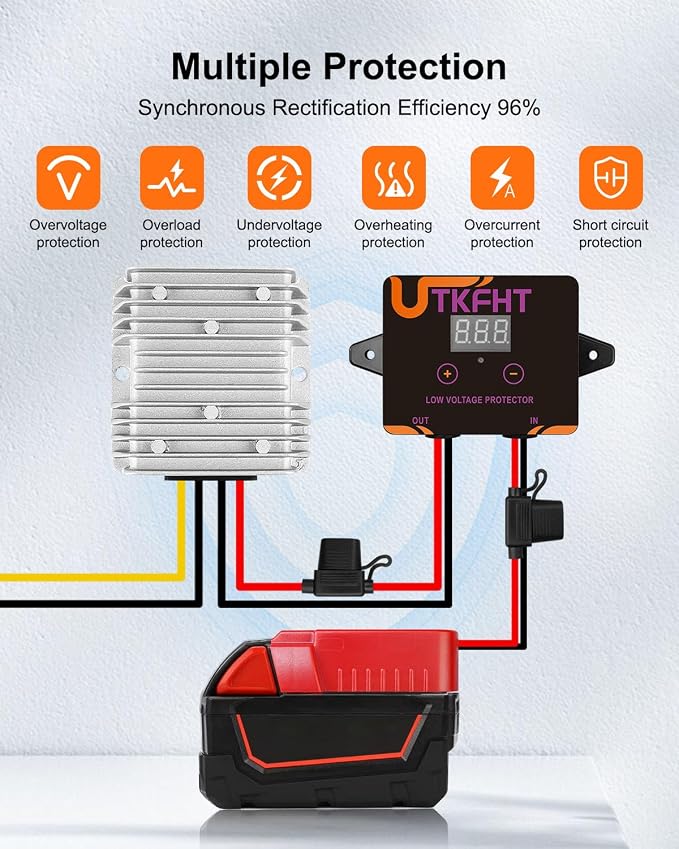

• Low Voltage Protection: Equipped with an adjustable low-voltage protector, it provides comprehensive safeguards against overvoltage, undervoltage, overcurrent, overload, overheating, and short circuits

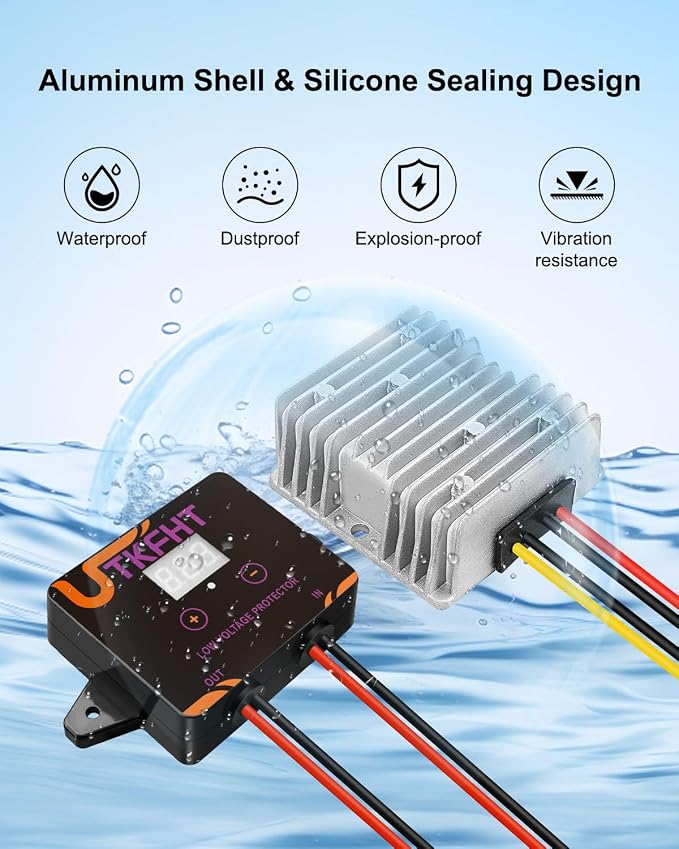

• Waterproof and Shockproof Protection: Designed with an aluminum casing and silicone sealing, the step-down converter offers superior waterproof, dustproof, explosion-proof, and shockproof performance, ensuring reliable operation in harsh environments
• Wide Application: Our power converter regulators are widely used in cars, trucks, golf carts, LED light strips, screens, monitoring systems, motors, and various DIY projects
• Note: Due to PCB size limitations, this low-voltage protection module uses a miniature relay and thin wire design. Therefore, in actual use, the current should not exceed 8A to avoid damaging the relay contacts. The low-voltage protection will still operate when the set voltage is reached; it is recommended to disconnect the power supply immediately

Overview

• Brand : UTKFHT
• Color : Black
• Input Voltage : 15 Volts (DC)
• Output Voltage : 12 Volts
• Plug Format : Type M
