Wide Application: Supports 7S 8S 10S 12S 13S 14S 15S 16S 17S packs at 24V 48V 60V for Li-ion, LiFePO4, and LTO. Covers multiple battery types with a single BMS—no extra boards required.

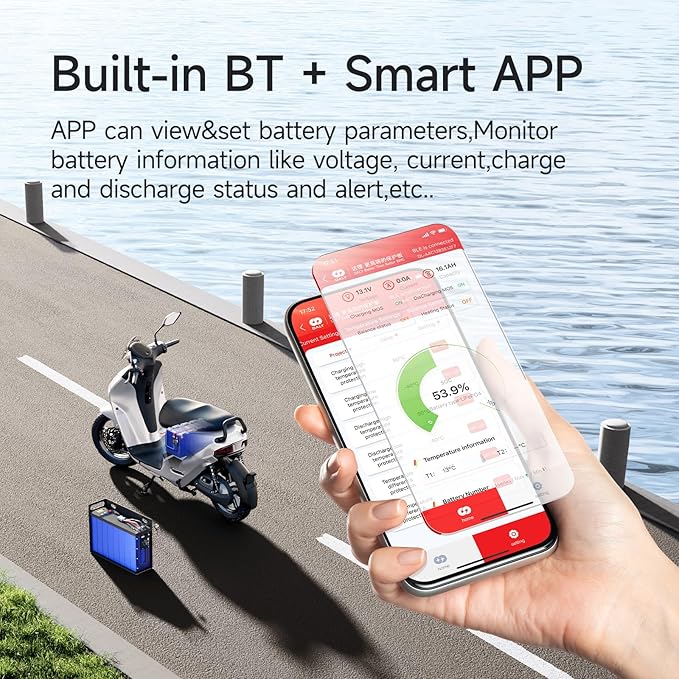

Smart Monitoring: Built-in Bluetooth lets you monitor each cell’s voltage, pack temperature, and current in real time. Set protection limits and receive instant alerts. Enhanced Safety: overcharge, overdischarge, overcurrent, high and low temperature, ESD, pre-charge, connection loss, and short circuit.
Easy Auto-Detection and Low Power: Automatically recognizes pack configuration on first power-up, simplifying installation and reducing setup errors. Ultra-low operating current (≤10mA) and sleep current (<600µA) minimize battery drain during use and storage.
Flexible Expansion and Parallel Support: Supports packs from 7S up to 17S. Built-in parallel balancing module allows safe expansion if you add cells or increase pack voltage in the future—ideal for a potential future upgrade without replacing the BMS.

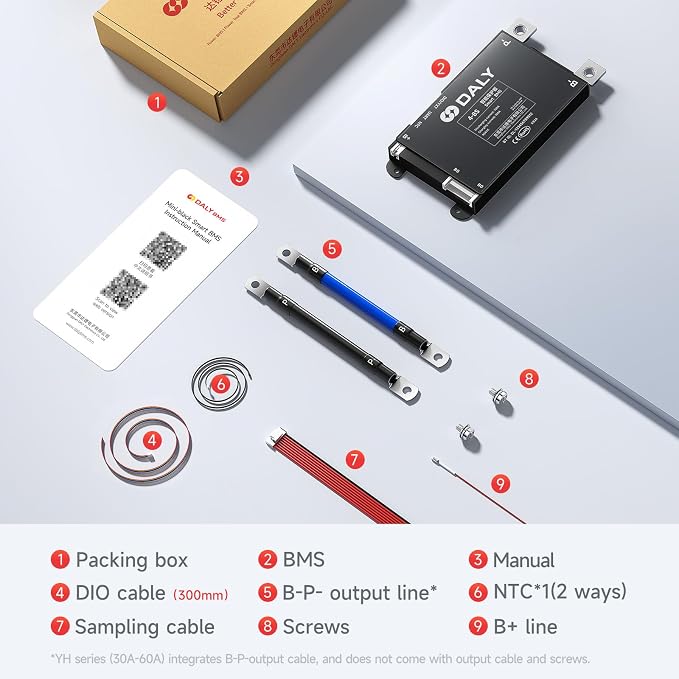

5-Year Warranty. Package includes: BMS, user manual, DIO cable, B-P- output line, NTC, sampling cable, screws, and B+ line.
Overview
Brand : DALY
Color : Black
Input Voltage : 24 Volts (DC)
Item dimensions L x W x H : 3.98 x 2.58 x 0.56 inches
