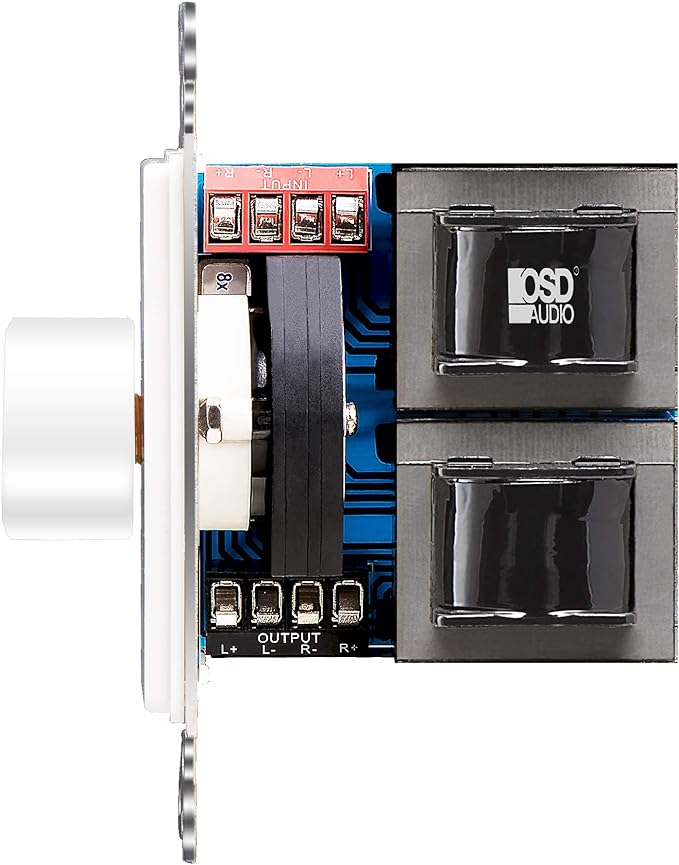

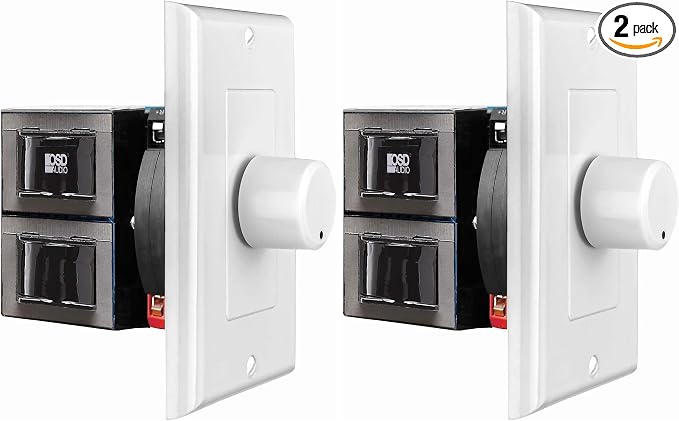

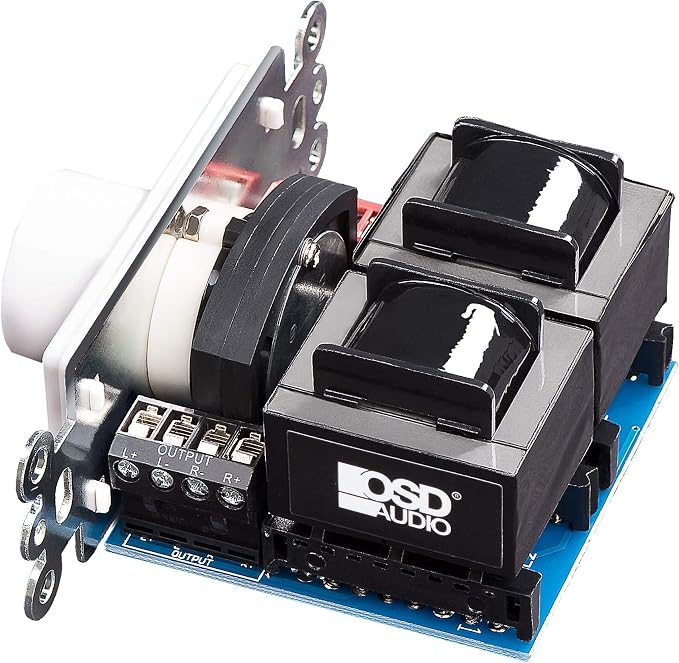

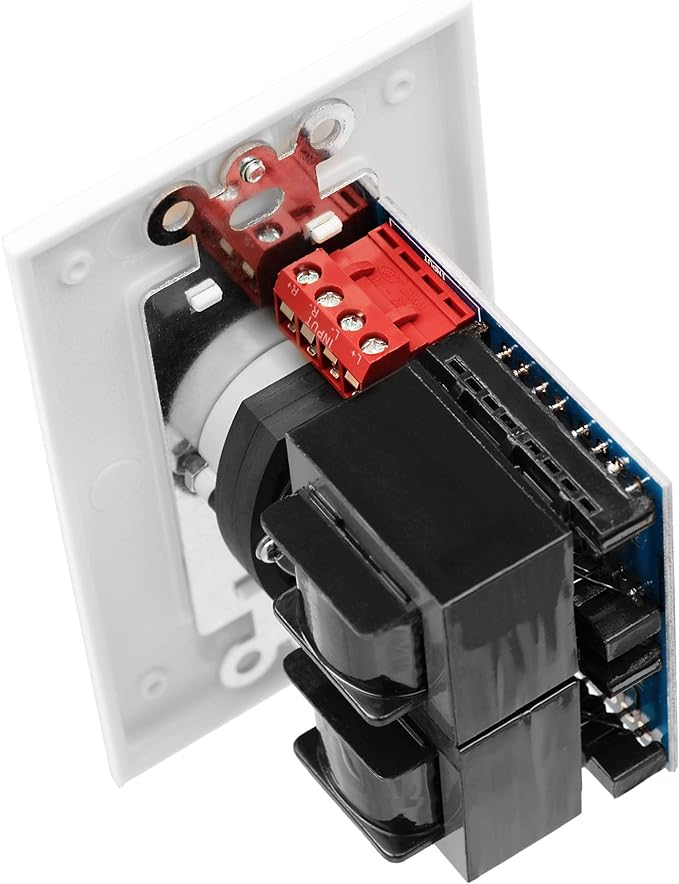

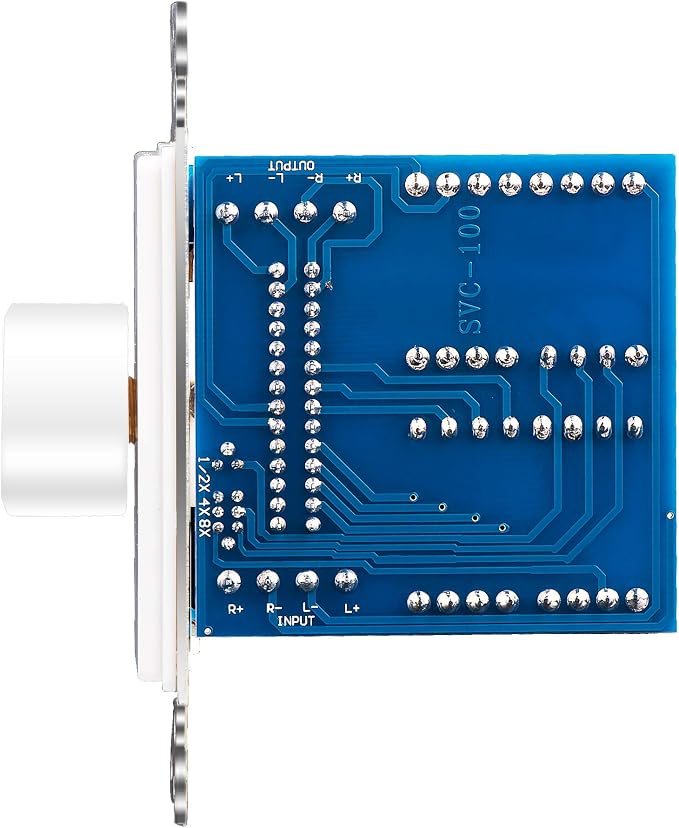

OSD Audio 100W in Wall Volume Control, Impedance Matching Speaker Control, Rotary Knob, White, SVC100, 2 Pack
OSD Audio 100W in Wall Volume Control, Impedance Matching Speaker Control, Rotary Knob, White, SVC100, 2 Pack
Regular price
$97.16 USD
Regular price
$97.16 USD
Sale price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
About This
- The information below is per-pack only
- HIGH POWER: The SVC100 is rated at 100 Watts per channel with minimal bass roll-off. It includes front mounted adjustable jumpers to add up to eight pairs of 8 ohm speakers simultaneously.
- VOLUME CONTROL: The controls allow you to adjust the volume of a pair of speakers independently of other speakers in a house audio system. They are ideal for both softer and higher volume locations.
- IMPEDANCE PROTECTION: This feature of SVC100 assists in stabilizing the ohm load going back to the amp or receiver with parallel connections to avoid overheating and damaging expensive equipment by matching the impedance.
- KNOB: Wire a 12-step linear rotary-style knob for a wide range of listening volumes. Includes junction box and screws as well as white, ivory and almond trim plates to match any room decor.
- DESIGN: For dedicated audio zones, the dΓ©cor plates install easily into a wall and work with almost any system. It accepts up to 14 gauge wiring and fits in a standard gang box with a 2.9β depth.
Overview
- Contact Type : Normally Open
- Connector Type : Screw Terminals
- Brand : OSD Audio
- Switch Type : Rotary
- Terminal : Screw
- Item dimensions L x W x H : 5 x 3 x 4.5 inches
- Circuit Type : parallel
- Mounting Type : Wall Mount
- Contact Material : Copper, Brass
- Color : White/Ivory/Almond
