About This

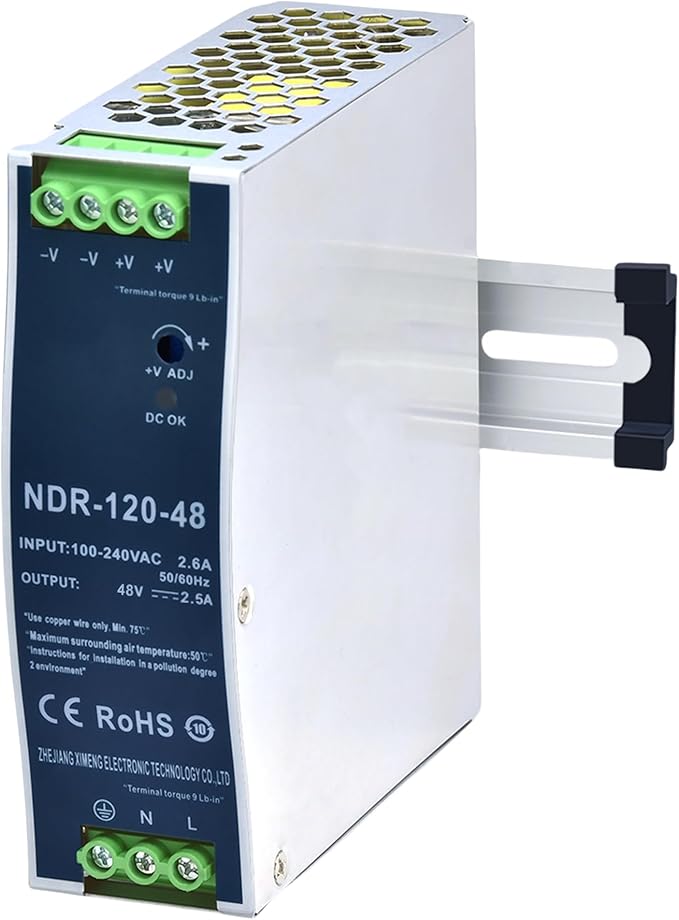

• 【NDR-120-48 DIN Rail Power Supply】 Premium 120W 48V DC 2.5A industrial switching power supply. Engineered for high reliability and stable power conversion in demanding industrial environments.【Quick & Easy DIN Rail Mount】 Designed for seamless, tool-free installation on standard TS-35/7.5 and TS-35/15 DIN rails. Its compact and slim footprint saves valuable space inside your control cabinets and distribution boxes.

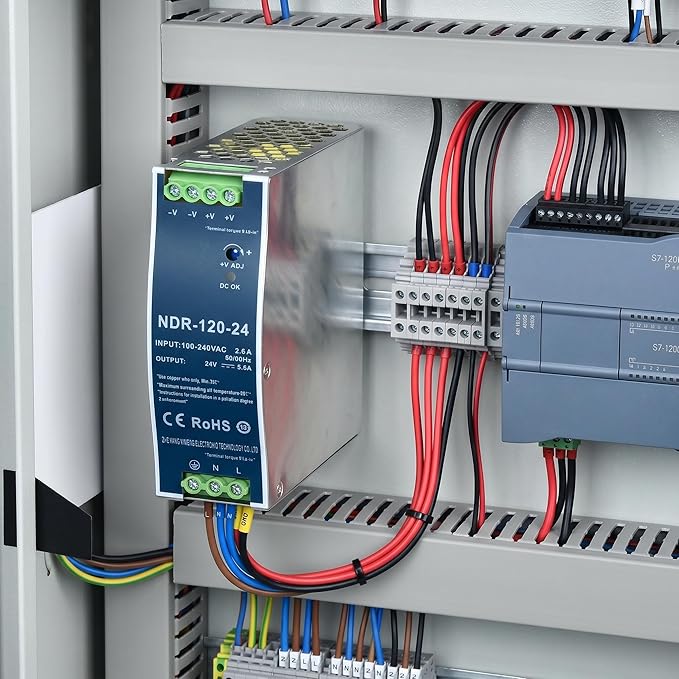

• 【Quick & Easy DIN Rail Mount】 Designed for seamless, tool-free installation on standard TS-35/7.5 and TS-35/15 DIN rails. Its compact and slim footprint saves valuable space inside your control cabinets and distribution boxes.
• 【Stable 48V Output & Precise Adjustment】 Delivers a consistent 48V output at 2.5 Amps. Features a front-panel +V ADJ potentiometer, allowing operators to fine-tune the voltage to effortlessly compensate for line voltage drops over long wire runs.

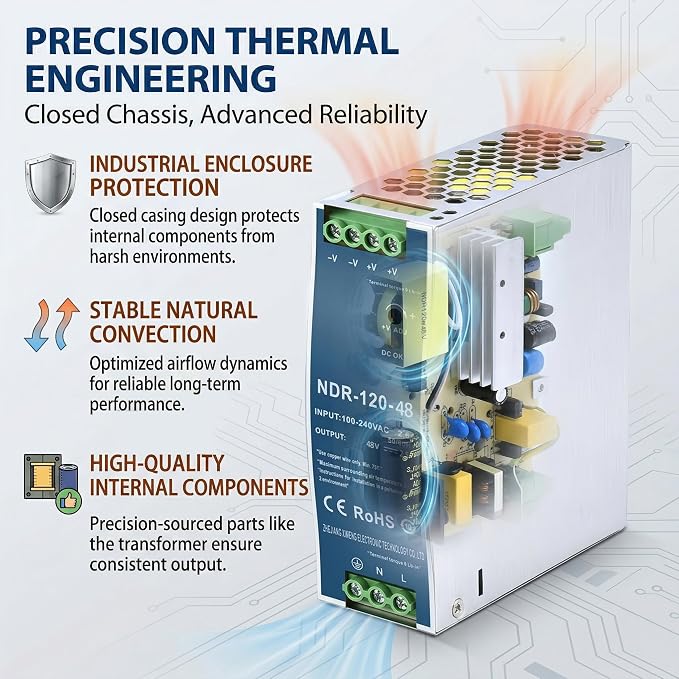

• 【Universal AC Input & 88% Efficiency】 Accepts a wide input voltage range of 90-264VAC (47-63Hz) for global compatibility. The fanless, natural convection cooling design minimizes heat loss, achieving up to 88% high efficiency and ensuring silent, zero-noise operation.

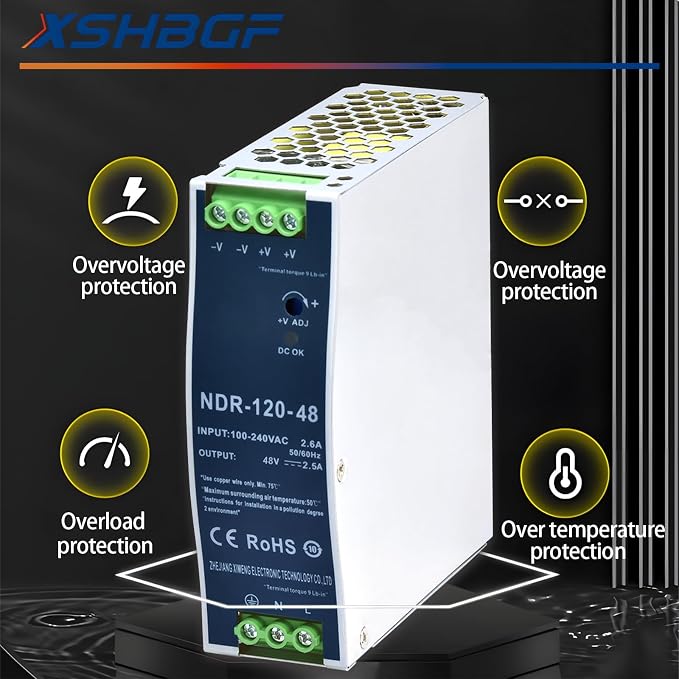

• 【Multi-Protection & Wide Application】 Built-in safeguards against Short Circuit, Overload, Over Voltage, and Over Temperature. Perfectly suited for PLC networks, industrial automation, electromechanical equipment, and semiconductor manufacturing systems.

Overview

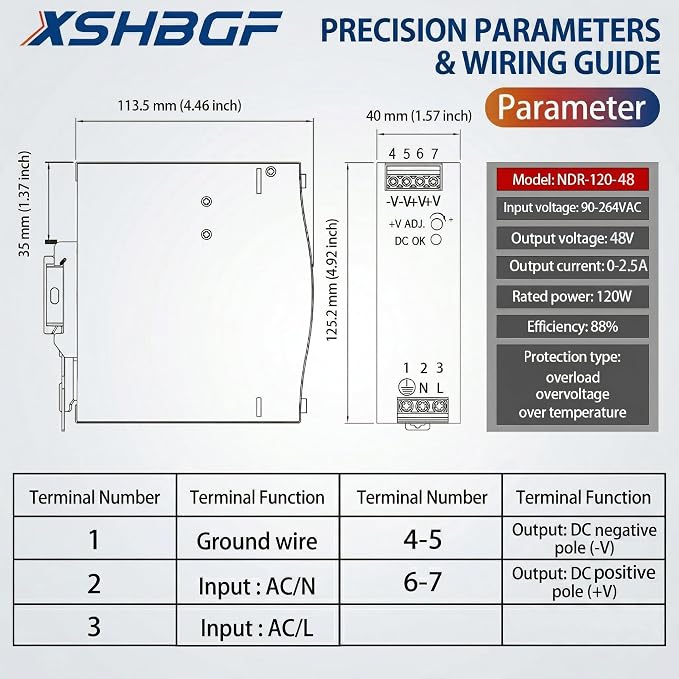

• Model Name : NDR-120-48
• Brand : XSHBGF
• Output Wattage : 120 Watts
• Form Factor : DIN Rail
• Wattage : 120 watts
• Cooling Method : Air
• Item dimensions L x W x H : 4.42 x 1.57 x 4.92 inches
• Current Rating : 2.5 Amps
• Maximum Input Voltage : 264 Volts (AC)
• Minimum Input Voltage : 90 Volts (AC)
